Ambient + 5°C to 450°C Temperature Dry Block Calibrator
Portable Dry Block Calibrator with Multiple Well Insert
Volume discounts available
Volume Discount Schedule
| Quantity | Price each |
|---|---|
| 1-4 | $3,142.50 |
| 5-9 | $2,985.38 |
| 10-24 | $2,922.53 |
| 25-49 | $2,796.83 |
| 50-99 | $2,733.98 |
| 100+ | $2,671.13 |
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
- Maximum temperature of 450°C (850°F)
- Minimum temperature of 5°C (9°F) above ambient
- An independent over-temperature cutout, 470°C (875°F)
- Heat up time 25° C to 400°C with stability at 12 minutes
- Lightweight and portable for use in field, lab or industrial setting
- Insert 1/8", 3/16", 1/4", 5/16" & 3/8" diameter wells
- CE Marked and NIST-Traceable Calibration
DBCL-400-120 Model Options
View all modelsEdit these specs to order a different model. Not all combinations are valid. Options compatible with previous selections will be in bold.
*Highlighted options are not compatible. Please select a different combination.
Supply Voltage
Process Temperature Unit
Process Temperature Min
Process Temperature Max
Process Temperature Range
Accuracy Value
Stability
Style
Communications Protocol
Additional Features
- Maximum Ambient Temperature 40°C (104°F)
- Maximum Temperature Measurement Ambient 450°C (850°F)
- Measurement Units °C or °F
- Minimum Ambient Temperature 5°C (9°F)
- Minimum Temperature Measurement Ambient 5°C (9°F)
- Supply Frequency 230V, 50/60 HZ, 900W

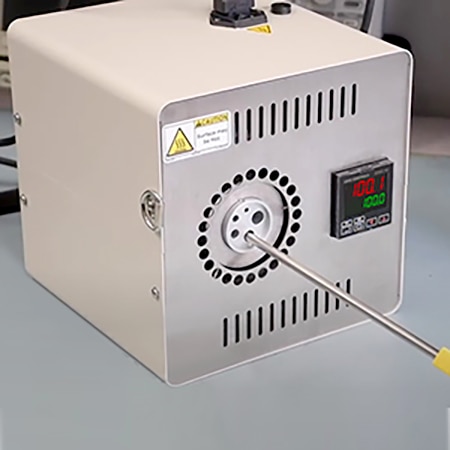

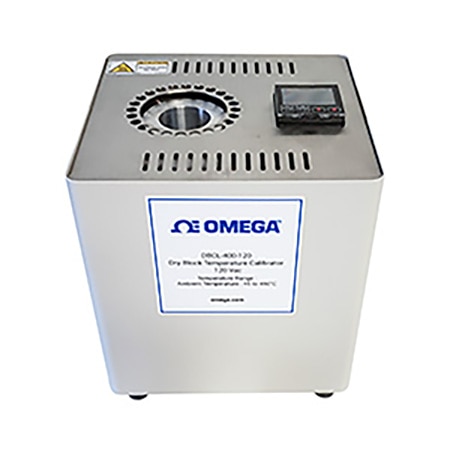

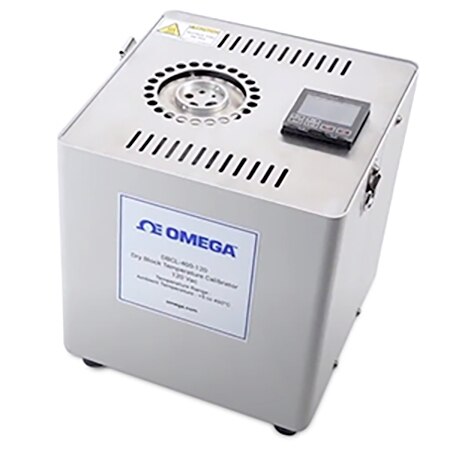

The DBCL400 calibrator provides a safe, dry, constant temperature source for checking and calibrating a wide range of temperature sensors, systems, indicators and thermometers. It is fast and economical and can be used either on a bench top or as a portable field unit. The weight of the unit is only 11 pounds/5 kilograms. The unit covers the temperature range from 5°C above ambient up to 450°C using a machined aluminum block as the heat transfer medium. The temperature control circuit is built into the unit and includes over-temperature limit protection.
Where can I find the technical sheet of this equipment? what is the size of the well? what would be the size of the inserts?
Hi Efra_80
Thank you for the inquiry. Manual includes specifications. Unit includes "Multiwell insert" detailed in the manual. Well depth is 4.5 inches.
https://assets.omega.com/manuals/DBCL-400-Manuals.pdf
Best regards
OMEGA
Date published: 2022-12-04
Is the calibration NIST-traceable?
Thank you for your inquiry Kate27. This calibrator does not provide a NIST traceable calibration. However, this calibrator can be offered with a NIST calibration certificate.
Date published: 2022-06-23
Has this been CL or NRTL reviewed and approved?
Hi kentk,
Thank you for the inquiry. This device is not UL or similar 3rd party certified.
Best regards
OMEGA
Date published: 2020-03-11
