Omega Layer-N Long Range Wireless/Modbus IIoT Ethernet Gateways
Layer N Wireless Gateway Professional, 915 MHZ
Volume discounts available
Volume Discount Schedule
| Quantity | Price each |
|---|---|
| 1-9 | $372.58 |
| 10-24 | $342.77 |
| 25-49 | $316.69 |
| 50-99 | $298.06 |
| 100-199 | $279.44 |
| 200+ | $260.81 |
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
- Free Layer N Standard Cloud service accessible from any connected device 1
- Easy one-button pairing with Smart Sensor
- Transmits up to 2 km2
- Modbus TCP and RTU RS232/RS485 device support
- POE support for remote power applications
- AES-256 Encrypted wireless link keeps your data secure
- Wireless Gateways can connect up to 256 Smart Sensors per unit3
GW-001-3-NA Model Options
View all modelsEdit these specs to order a different model. Not all combinations are valid. Options compatible with previous selections will be in bold.
*Highlighted options are not compatible. Please select a different combination.
Radio Frequency Compatability
Features
Function
Output Type
Maximum Devices Supported
Encryption

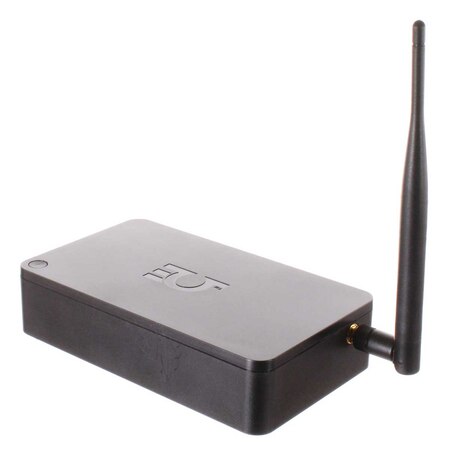

GW-001 Series gateways are designed for long range performance and ease of use. They aggregate data from all connected sensors and transmit it to the Layer N Cloud where it can be securely accessed from your PC, tablet or phone.
Long Range
The Wireless Gateways utilize Sub GHz Frequency Hopping Spread Spectrum (FHSS) technology to ensure robust, long range communications to Layer N Smart Sensors. Transmission ranges of up to 1.2 km can be achieved when the sensor is powered with the standard AA batteries, and transmission ranges of up to 3.2 km can be achieved with a Smart Sensor in range boost mode powered by a standard external 5V USB power supply.2
Plug and Play
The Layer N Gateway is easily paired to Layer N Smart Sensors with the press of a button and will automatically show up on your Layer N Cloud account. Local data logging for your Smart Sensor devices keeps your data secure in the event of a power or network outage. Reports, History, and E-mail alerts from the Layer N Cloud keep you informed on the status of all your vital processes.
Secure
Layer N wireless products are designed with state of the art security features to protect your data with robust AES256 encryption and advanced PKA-EC521bit (NIST) elliptic-curve cryptography to protect your data. The gateway features a Trusted Platform Module secure hardware element which protects the safety of all encryption keys and usesX.509 device certificates for secure communication between the gateway and the Layer N Cloud.
Wireless Standard: GW-001-2
This high performance wireless gateway seamlessly connects to up to 256 long range Layer N Smart Sensor devices. Ethernet connectivity ensures fast, easy connection to the Layer N Cloud. Local access is also available through the built-in web server.
- 1. Visit Layer N Cloud for subscription options. Level of service varies with subscription tier.
- 2. Clear Line of sight. Actual range will vary depending on environment.
- 3. 256 sensors are supported at typical update intervals, on the order of 60 minutes, higher data rates or adverse environmental conditions may diminish the number of sensors supported.
Wireless Pro: GW-001-3
The Wireless Pro adds both Modbus TCP and RTU RS232/RS485 device support and two USB ports to enable local smart probe connections. It also features power over Ethernet (POE) which enables the gateway to be remotely powered.
Wired Standard: GW-001-0
This version is designed specifically for wired applications. It features standard Ethernet connectivity to the Cloud, plus both Modbus RTU RS232/ RS485 and Modbus TCP connectivity suitable for a wide range of wired applications.
Specifications
Wireless Communication Frequency*: *Wireless communication is only available on qualifying variants **Maximum range possible when Smart Sensor is powered by USB and without obstructionPower
AC Adapter: DC 12V @ 2APower over Ethernet*: IEEE 802.3at compatible Type 1 Class 3 *PoE only available on Wireless Pro variant
Interface*
RJ45: 2x portsUSB: 2x USB 2.0
DC Jack: DC 12V power input
Serial Port: RS232/RS485
Alarm: SSR 36VDC 100mA
Antenna: One Antenna for Sub-1G
*Interfaces available vary according to model purchased
Environmental
Rating: IP40Operating Temperature: -20 ℃ to 65 ℃, non-condensing
Mechanical
Dimensions: 170 mm L x 100 mm W x 42 mm H (6.69” x 3.93” x 1.65”)Certifications
Contains FCC ID: WR3-MOD16370915Contains IC ID: 8205A-MOD16370915
Emission & Immunity for EMI/EMS
FCC: FCC Part 15BCE: EN 301 489-1/-3
Radio Frequency & Human Exposure/SAR
FCC: FCC Part 15C (15.247) FCC MPECE: EN 300 220
EN 62311 MPE
Safety
LVD: EN 62368-1Your Data at a Glance with Layer N Cloud
Layer N Cloud consolidates and brings your data to you when you need it, wherever you are. The intuitive cloud interface allows you to monitor and store your data, set alarms and alerts, and provides insights on device activity.
General
Max number of Smart Sensors: Up to 256 Smart Sensors can connect to a wireless gateway unitVariants
Smart Sensors
The Layer N ecosystem supports a variety of Smart Sensors. Up to 256 Smart Sensors can connect to a GW-001 unit. We currently offer the following options.
| Model Number | Description |
|---|---|
| GW-001-0 | Wired IIoT Gateway Standard |
| GW-001-2-NA | Wireless IIoT Gateway Standard |
| GW-001-3-NA | Wireless IIoT Gateway Pro |
Smart Sensors
The Layer N ecosystem supports a variety of Smart Sensors. Up to 256 Smart Sensors can connect to a GW-001 unit. We currently offer the following options.
| Model Number | Description |
|---|---|
| SS-001-1-NA | Temperature and Humidity Smart Sensor - 915MHz |
| SS-001-3-NA | Temperature, Humidity, Barometric Pressure, Light Smart Sensor - 915MHz |
Rated 5 out of
5
by
Ky Port from
great product
A reliable product for managing data from multiple devices
Date published: 2022-10-30
Rated 5 out of
5
by
Gateway User from
Gateway works as expected.
The Gateway has excellent range and is easy to setup. I recommend this product.
Date published: 2022-09-16
Rated 4 out of
5
by
Manuel from
Easy to use.
Easy to setup. Useful features when it is accessed from the cloud. Good price .
Date published: 2021-04-25
Can I connect directly to a PLC via Modbus?
Thank you for your question. Currently, the GW-003-1-NA cannot connect directly to PLC via modbus. Possibly in a future release.
Date published: 2020-12-09
I need something that can monitor temperature and humidity and notify multiple people by email when either exceed a limit. I'm looking at a SS-001-1-NA sensor and a GW-001-00 gateway. Can those two do what I'm after on the free Layer N Cloud account?
Thank you for your question. Yes, if the users have been added by the admin user and assigned the device, then the alarm generated by that device will send to these users.
Date published: 2022-06-17
Can I connect two wireless sensor SS-002-0-NA to the wireless receiver GW-001 series?
Thank you for your question. You can monitor up to 256 wireless sensors to wireless gateway receiver.
Date published: 2020-09-17
