Industrial Metal Pipe Clamp HANI Temperature Sensor
0 to 100°C, 4-20 mA, 1.0" Industrial Metal Pipe
Volume discounts available
Volume Discount Schedule
| Quantity | Price each |
|---|---|
| 1-4 | $656.25 |
| 5-9 | $623.44 |
| 10-24 | $590.63 |
| 25-49 | $557.81 |
| 50-99 | $525.00 |
| 100+ | $492.19 |
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
- Non-invasive temperature measuring fluid inside the pipe
- No process downtime or welding needed for install
- Installation in a matter of seconds with clamping mechanism
- As accurate as an invasive sensor, ±0.50 to ±1.0°C accuracy
- Response time = 5 sec (t63), 10 sec (t90)
- Currently available for 1.0" and 2.0” pipe diameters
- Process temperature from 0 to 100°C
- M12 8-pin connection for versitile communication
- 4-20mA loop powered analog output
- Smart Core integration for LayerN interfacing
- Patent pending and IP65 rated
- Sensor color subject to change
- Click here for additional content and here for installation support!
- Begin with the quick start guide!
HANI-C-1.0I-M-MA Model Options
View all modelsEdit these specs to order a different model. Not all combinations are valid. Options compatible with previous selections will be in bold.
*Highlighted options are not compatible. Please select a different combination.
Process Size
Additional Features
Process Temperature Range
Sensor Application
Accuracy
Response Time
Output
Connection Type
- Input Power 8-28 VDC (Loop Powered)
- Operating Temperature 0°C (32°F) to 40°C (104°F)
Ease of Installation

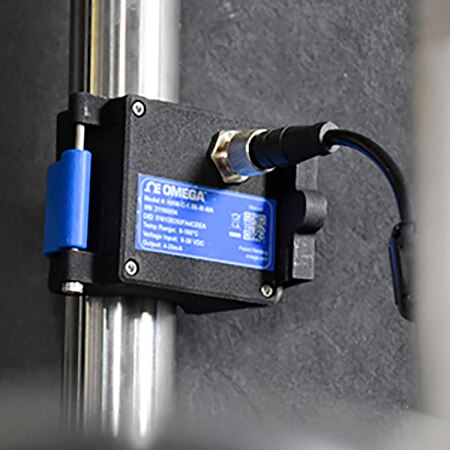

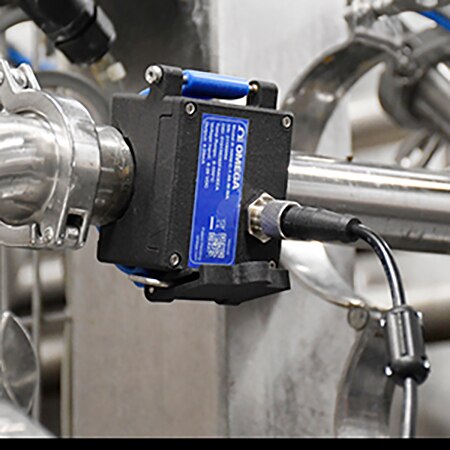

Install your HANI™ Clamp Sensor in seconds
Omega’s innovative clamp-on design makes sensor installation easy. Unlike invasive sensors, the HANI™ Clamp Sensor mounts to the outside of an industrial metal pipe and measures the temperature of the process media inside the pipe.
- • No drilling
- • No welding
- • No downtime
Need to relocate the sensor? Un-clamp and go!
High Accuracy & Fast Response Times
Performs like an invasive sensor.
Omega’s patent pending Hybrid Temperature Sensing platform uses multiple sensors and a proprietary algorithm to achieve the same accuracy and fast response times as state-of-the-art invasive sensors without the cost and risk.
• Accuracy for industrial metal pipes: ±0.5 to ±1.0℃
•Response time = 5 sec (t63) / 10 sec (t90)
Industrial pipes have a wide variety of tolerances, surface finishes, and coatings which can affect the accuracy. An in-situation user calibration can be done to improve the accuracy for your specific application. Use the free Omega Sync software to do a 1 or 2-point calibration with the HANI™ Clamp Sensor and an in-place immersion sensor. See the user manual for additional details.
Non-Invasive & Non-Contact Operation
No penetration, no risk of contamination
The HANI™ Clamp Sensor never comes into contact with the process media flowing through the pipe. There is no risk of buildup, sensor wear or breakage from high flow rates, corrosive/abrasive liquids, wake frequency and water hammer.
Ensure you select the right sensor for your system
Industrial pipes have different outer and inner diameters, make sure you pick the correct sensor for your application. The HANI Clamp Sensor is factory set for schedule 40 industrial pipes. To adjust to a different pipe schedule please refer to the user’s manual.
| Pipe Type | OD (Outer Diameter) | ID (Inner Diameter) | Wall Thickness | Schedule |
| 1.0” Industrial Pipe | 1.315” | 1.049” | 0.133” | 40 |
| 2.0” Industrial Pipe | 2.375” | 2.067” | 0.154” | 40 |
| 1.0” Industrial Pipe | 1.315” | 0.957” | 0.179” | 80 |
| 2.0” Industrial Pipe | 2.375” | 1.939” | 0.218” | 80 |
Common Applications
New and retrofitting existing systems
Lower the total cost of ownership and reduce contamination risk without sacrificing performance by upgrading to a HANI™ Clamp Sensor.
Quality control & ad-hoc sensing
Clamp-on the sensor in seconds and connect to your laptop or PC for readings anytime - anywhere.
Verify existing invasive sensors
With accuracies comparable to most state-of-the-art invasive sensors, the HANI™ Clamp Sensor can easily be placed next to an invasive sensor to verify the accuracy or determine the drift of the invasive sensor.
RoHS 2015/863 - View Certificate
CE Approved
UKCA
Hani noninvasive clam temperatrue sensor. Q: 1. any experience within ice cream pipe lines (i.e. some examples re pipe chil)? 2. how does it deal with startup issues (i.e. environmental frost build up and product build up at inside of pipe work)?
Hi RTFeenstra,
Operating range is limited to 0 C on the low end. Unit will provide temperature of the media at the site of the sensor. Please forward request to TEMP@OMEGA.COM for more details.
Best regards,
OMEGA
Date published: 2022-10-21
Will this measure a gas temp inside a pipe.
Thank you for your inquiry. This device measures liquid media only.
Date published: 2022-09-14
