Bench Top Weigh Scale for High Weight Capacities
2.205 lb
Volume discounts available
Volume Discount Schedule
| Quantity | Price each |
|---|---|
| 1-9 | $1,337.98 |
| 10-24 | $1,271.08 |
| 25-49 | $1,244.32 |
| 50-99 | $1,190.80 |
| 100+ | $1,164.04 |
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
- Bright 6-Digit Display
- High Internal Resolution: Up to 1:16 Million
- Bidirectional RS232 Communications
- Parts Counting or Weighing
- Quality-Control Stations
- General Purpose Benchtop Weighing Applications
- Capacities 2.2 to 220 lb
CS7600-2 Model Options
View all modelsEdit these specs to order a different model. Not all combinations are valid. Options compatible with previous selections will be in bold.
*Highlighted options are not compatible. Please select a different combination.
Weight Capacity
Resolution
Dimensions
Features
Material

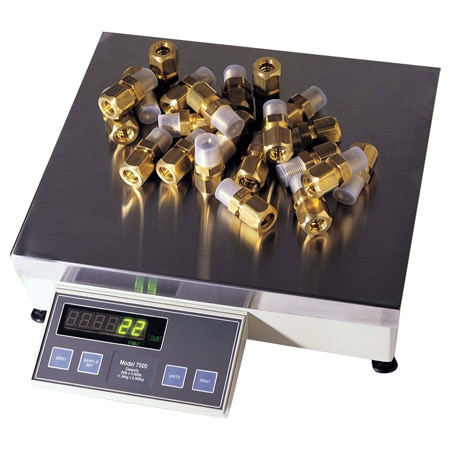

Designed for speed and high accuracy, the CS7500 is key to any inventory control requirement. Features include fast, one-button counting; auto-sample update for improved accuracy; 1:16 million internal resolution; 2 user-selectable units of measure; and heavy-duty cast internal construction.
The CS7600 has a long list of powerful functions, including one-button counting; auto-sample update for improved accuracy; %-accuracy or %-error display; full numeric keypad; 2 weigh units(lb/kg or user selectable); and input and display of piece weight, tare weight plus 6-digit ID number, sample quantity, and gross/net weights.
SPECIFICATIONS
CS7500 and CS7600 Count Features:
- Auto-sample update
- 4 preset sample sizes (or can be programmed for any sample size)
CS7600
Count Features:
- Display of percent of error or accuracy when sampling
- Display/key entry of piece weight (or piece weight per thousand)
- Sample and sample-to-bulk counting with second optional platform
- Pushbutton or keyboard tare entry
- Display of gross/net/tare weights
- 2 standard metrological weight units
Display Module:
- 14.2 mm (0.56'), 6-digit, 7-segment, bright green LED display
- Sealed, rugged, touch-panel display
- Major functions have their own keys
Data Communications: Bidirectional RS232
Internal Resolution:
LCS7500: 1:16 million
LCS7600: 1:1 million
Power: 120 Vac
Dimensions: 356 L x 394 W x 133 mm H (14 x 15.5 x 5.25')
Weight: 6.9 kg (15.3 lb)
The CS7600 has a long list of powerful functions, including one-button counting; auto-sample update for improved accuracy; %-accuracy or %-error display; full numeric keypad; 2 weigh units(lb/kg or user selectable); and input and display of piece weight, tare weight plus 6-digit ID number, sample quantity, and gross/net weights.
SPECIFICATIONS
CS7500 and CS7600 Count Features:
- Auto-sample update
- 4 preset sample sizes (or can be programmed for any sample size)
CS7600
Count Features:
- Display of percent of error or accuracy when sampling
- Display/key entry of piece weight (or piece weight per thousand)
- Sample and sample-to-bulk counting with second optional platform
- Pushbutton or keyboard tare entry
- Display of gross/net/tare weights
- 2 standard metrological weight units
Display Module:
- 14.2 mm (0.56'), 6-digit, 7-segment, bright green LED display
- Sealed, rugged, touch-panel display
- Major functions have their own keys
Data Communications: Bidirectional RS232
Internal Resolution:
LCS7500: 1:16 million
LCS7600: 1:1 million
Power: 120 Vac
Dimensions: 356 L x 394 W x 133 mm H (14 x 15.5 x 5.25')
Weight: 6.9 kg (15.3 lb)
