G2-Series General Purpose Indicating Flow Meters & Transmitters

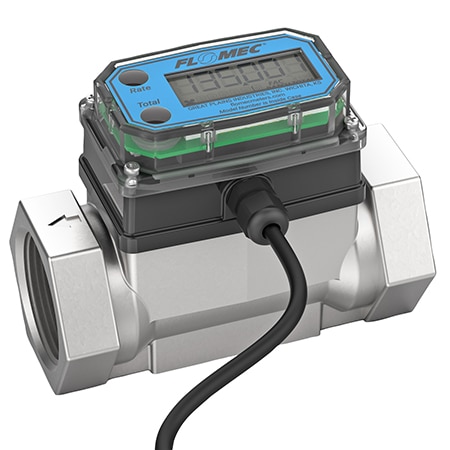

1/2" SS Indicating Flow Transmitter, 1-10 GPM, 4-20mA & Pulse Output
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
- Meter is designed for thin fluids < 100 cP
- 2 Totals (Batch Total = Resettable, Total = Non-Resettable) Rate of Flow
- Internal parts are simple to replace for easy maintenance
- Indication Only, Indication and Pulse, Indication Pulse & Current Outputs Available
G2S05N42GMX Model Options
View all modelsEdit these specs to order a different model. Not all combinations are valid. Options compatible with previous selections will be in bold.
*Highlighted options are not compatible. Please select a different combination.
Category
Flow Range
Accuracy
Output Signal
Process Connection Size
Features
Media Type
Max Operating Pressure
Max Process Temperature
Wetted Materials
Process Connection Type
Display
Turbine Meters with microprocessor-based electronics offers a durable, compact, high-precision fluid measurement device, with total and rate indication. Information is clearly displayed on a large 6-digit liquid crystal display with only 2-point floating decimal for totals from 0.01 to 999,999. All operations are easily performed with only 2 buttons.
The basic unit and display are powered by 2 AAA batteries, providing up to 2 years of use. Cumulative total, batch total, and rate of flow are standard. A single-point field calibration curve can be stored in memory.
Accuracy
G2SO5: ±2% rdg
G2SO7, G2S10: ±1.5% rdg
G2S15, G2S20: ±1.0% rdg
Repeatability: ±0.1%
Pressure Rating: 1500 psig (103 bar)
Temperature Range: -10° to 60°C (14 to 140°F)
Viscosity: Rated accuracy for fluids with viscosity of water (1 cSt); meters with display can be used for fluids up to 100 cSt with field calibration
Wetted Components:
Housing: 316 SS
Journal Bearings:Ceramic (96% alumina)
Shaft: Tungsten carbide
Rotor and Supports: PVDF
Retaining Rings: 316 SS
Outputs:
G2SXXNQ9GMX: None
G2SXXNP9GMX:Pulse
G2SXXN42GMX: 4-20 mA & Pulse

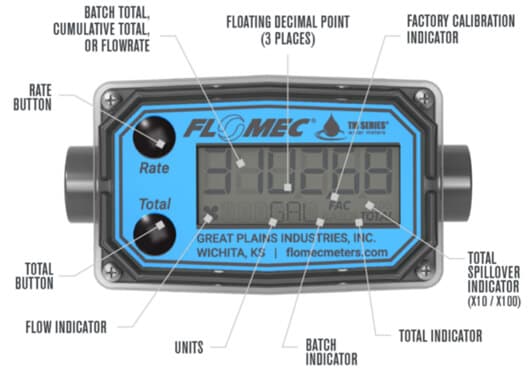

Display: 6-Digit LCD indicates flow rate, batch and cumulative total
Battery Life: 2 years
