1 Channel S Type Thermocouple High Temperature NEMA-4X Meter
Handheld Digital Thermometers Type R and S Input, High Temperature Measurement
Volume discounts available
Volume Discount Schedule
| Quantity | Price each |
|---|---|
| 1-4 | $97.40 |
| 5-9 | $92.53 |
| 10-24 | $90.58 |
| 25-49 | $86.69 |
| 50-99 | $84.74 |
| 100+ | $82.79 |
Please contact Technical Sales Team for assistance. Any remaining stock is available for purchase
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
- NEMA-4X Dustproof, Water/Splash Resistant
- Measures Very High Temperatures
- Warning Beeper with Hi/Lo Setting, Time Setting
- Clock and Elapsed Time
- 0.1° Resolution
- Differential Thermocouple Input
- Stated Accuracy at 23 ± 5°C<75% RH
- Battery Life: 200 Hours
- Dimensions: 192 H x 91 W x 53 mm (7.6 x 3.6 x 2.2')
- Weight: Approx. 255 g (9 oz)
HH501AS Model Options
View all modelsEdit these specs to order a different model. Not all combinations are valid. Options compatible with previous selections will be in bold.
*Highlighted options are not compatible. Please select a different combination.
Category
Input Type
Minimum Temperature Measurement
Maximum Temperature Measurement
Input Connection Type
Display Type
Accuracy Value
Resolution
Supply Power
Number of Channels
Features

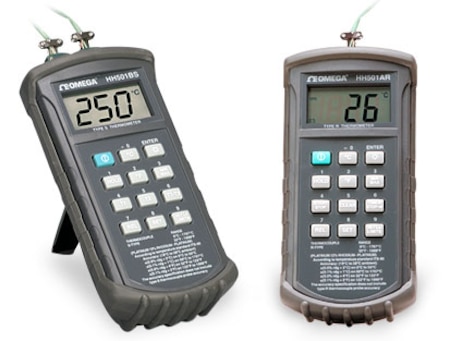

| HH501BR or HH501BS 1999 Counts Backlit LCD Display Models for Type R or S Thermocouple Input Reading HOLD, Max function Dual input with Differential Function T1-T2 | HH501AR or HH501AS 1999 counts Backlit LCD Display Models for Type Thermocouple Reading HOLD MAX function ITS-90 Accuracy Single Input |
| Specifications | HH501AS | HH501BS | HH501AR | HH501BR |
| Backlit LCD | • | • | • | • |
| No. of Digits | 1999 | 1999 | 1999 | 1999 |
| Probe (Type) | S | S | R | R |
| Input Channel | 1 | 2 | 1 | 2 |
| Range °C | 0-1787°C | 0-1767°C | 0-1767° | 0-1787°C |
| Range °F | 32-1999°F | 32-1999°F | 32-1999 | 32-1999°F |
| Resolution | 1° | 1° | 1° | 1° |
| Data/Hold | • | • | • | • |
| Max/Min | • | • | • | • |
| Relative | • | • | • | • |
| Hi/Lo Limits w/Beeper Warning | • | • | • | • |
| Display | 1 | 1 | 1 | 1 |
| T1-T2 | • | • | ||
| Battery | 9 V | 9 V | 9 V | 9 V |
| Auto Power Off | • | • | • | • |
| Basic Accuracy % rdg | 0.1% +1°C | 0.1% +1°C | 0.1% +1°C | 0.1% +1°C |
Is this a complete unit or do I have to purchase additional components?
Thanks for the question Robert. The product comes with the the handheld meter, no thermocouple is included and needs to be purchased separately.
Date published: 2021-02-24
