- Digital Display of Gauge or Differential Pressure
- 0 to 2 psi to 0 to 100 psi ranges
- User Selectable Engineering Units
- Min and Max Memory
- RS232 Output with Optional Software
- Auto Power Off and Low Battery Indication
- Bright Backlit Display
- Battery Life 30 hours (with out backlight)
- Battery Size 9V
- Batteries Included Yes
- compatible media Clean
- Battery Type Alkaline
- Connection Type Hose barb for 4 mm ID tubing
- Display Type Bright backlit display
- Form Factor Handheld
- Low Battery Indicator Yes
- Maximum Ambient Temperature 50 {C} (122 {F})
- Maximum Storage Temperature 60 {C} (140 {F})
- Measurement Type Pressure
- Minimum Storage Temperature -20 {C} (-4 {F})
- Number of Batteries 1
- Power Source Battery
- Pressure Units Engineering Units (User Selectable): psi
- Response Time 0.5 sec
The HHP4200 series has been discontinued. Please see the HHP8200 as a possible alternative or contact our Pressure Engineering department.

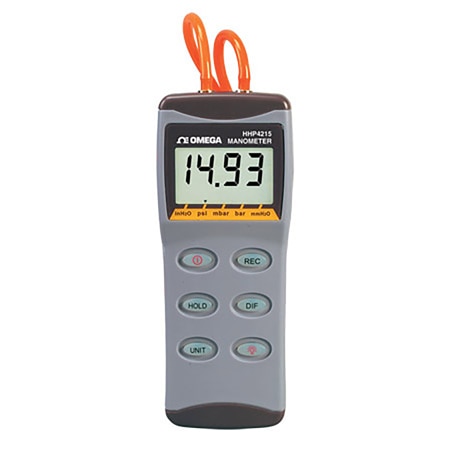

The HHP4200 series is a low cost handheld manometer capable of measuring differential pressure and positive or negative gauge pressure. Five models are available covering ranges from 0-2 to 0-100 psi. All models feature user selectable engineering units, MIN/MAX memory and a bright backlit display for easy viewing in low light conditions.
SPECIFICATIONS
Accuracy: ±0.3% FS
Resolution: See "To Order" table Engineering Units (User Selectable): psi, mbar, bar, inH2O, cmH2O, mmHg, ozin2, kgcm2, kPa, ftH2O, in Hg (except HHP4252: psi, mbar, bar, inH2O, mmH2O)
Storage Temperature: -20 to 60°C (-4 to 140°F)
Operating Temperature: 0 to 50°C (32 to 122°F)
Temperature Effects: ±0.2% FS typical (±1% max)
Proof Pressure: See "To Order" table
Pressure Media: Clean, dry, non-corrosive gases
Response Time: 0.5 sec Pressure Connections/
Tubing Size: Hose barb for 4 mm ID tubing
Battery: 9V battery (included)
Battery Life: 30 hours (with out backlight)
Dimensions: 182 H x 72 W x 30 mm D (7.16 x 2.83 x 1.18")
Weight: 150 g (5.3 oz)
The HHP4200 series is a low cost handheld manometer capable of measuring differential pressure and positive or negative gauge pressure. Five models are available covering ranges from 0-2 to 0-100 psi. All models feature user selectable engineering units, MIN/MAX memory and a bright backlit display for easy viewing in low light conditions.
SPECIFICATIONS
Accuracy: ±0.3% FS
Resolution: See "To Order" table Engineering Units (User Selectable): psi, mbar, bar, inH2O, cmH2O, mmHg, ozin2, kgcm2, kPa, ftH2O, in Hg (except HHP4252: psi, mbar, bar, inH2O, mmH2O)
Storage Temperature: -20 to 60°C (-4 to 140°F)
Operating Temperature: 0 to 50°C (32 to 122°F)
Temperature Effects: ±0.2% FS typical (±1% max)
Proof Pressure: See "To Order" table
Pressure Media: Clean, dry, non-corrosive gases
Response Time: 0.5 sec Pressure Connections/
Tubing Size: Hose barb for 4 mm ID tubing
Battery: 9V battery (included)
Battery Life: 30 hours (with out backlight)
Dimensions: 182 H x 72 W x 30 mm D (7.16 x 2.83 x 1.18")
Weight: 150 g (5.3 oz)
