24-Channel OPTO-Isolated Input Board w/ Digital Input Channels
24-Channel OPTO-Isolated Input Board
Volume discounts available
Volume Discount Schedule
| Quantity | Price each |
|---|---|
| 1-4 | $494.48 |
| 5-9 | $469.76 |
| 10-24 | $459.87 |
| 25-49 | $440.09 |
| 50-99 | $430.20 |
| 100+ | $420.31 |
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
- Optically Isolated Digital Input Channels
- Connects Directly to OME-PIO-D144
- AC/DC Signal Input
- AC Signal Input with Filter
- Input Buffer with Voltage Comparators
- Isolated Digital Input Sensing
OME-DB-24PD Model Options
View all modelsEdit these specs to order a different model. Not all combinations are valid. Options compatible with previous selections will be in bold.
*Highlighted options are not compatible. Please select a different combination.
Number of Inputs
Input Type
Output Type
Other Features

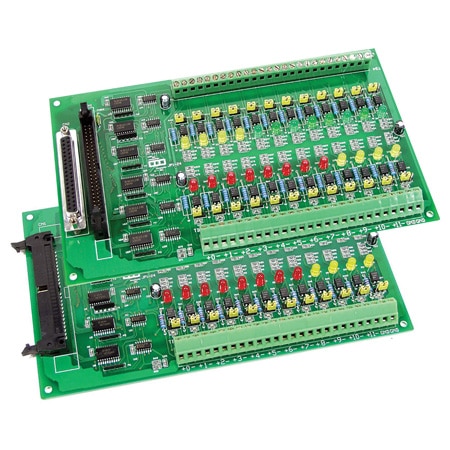

The OME-DB-24P is a 24 channel isolated digital input daughter board for OME-PIO-D144 digital input board. The optically isolated inputs of the OME-DB-24P consist of a bi-directional opto-couples with a resistor for current sensing. You can use the OME-DB-24P to sense DC signals from TTL levels up to 24 V. You can also use OME-DB-24P to sense a wide range of AC signals. The OME-DB-24P registers a constant logic high if the frequency of the input AC signal is greater or equal to 1 kHz, and if the voltage of the AC signal is at least 4 Vrms. If you are using an AC input signal, you must short the AC filter jumper. You can use the board to isolate the computer from large common-mode voltages, ground loops and voltage spikes that often occur in industrial environments.
Specifications
I/O CONNECTOR ELECTRICAL SPECIFICATIONS
Configuration: 24 optically isolated digital input channels
Compatibility: TTL compatible
Connector: OME-DB-24P, one 50-pin header; OME-DB-24PD,
one 50-pin header and one 37-pin D-sub connector
DIGITAL INPUT
Number of channels: 24, each with
its own ground reference isolated from other channels
Maximum Input Voltage: 24 Vdc or 24 Vac
Input Impedance: 1.2 K Ω
SOURCE CURRENT
5 V inputs: 4 mA per channel (min)
24 V inputs: 20 mA per channel (min)
Response Time: 20 µs without filter/2.2 ms with filter
Power Supplies: +5 V @336 mA max
Dimensions: 132 H x 220 mm W (5.2 x 8.7")
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -20 to 70°C (-4 to 175°F)
Humidity: 5 to 90% RH non-condensing
Specifications
I/O CONNECTOR ELECTRICAL SPECIFICATIONS
Configuration: 24 optically isolated digital input channels
Compatibility: TTL compatible
Connector: OME-DB-24P, one 50-pin header; OME-DB-24PD,
one 50-pin header and one 37-pin D-sub connector
DIGITAL INPUT
Number of channels: 24, each with
its own ground reference isolated from other channels
Maximum Input Voltage: 24 Vdc or 24 Vac
Input Impedance: 1.2 K Ω
SOURCE CURRENT
5 V inputs: 4 mA per channel (min)
24 V inputs: 20 mA per channel (min)
Response Time: 20 µs without filter/2.2 ms with filter
Power Supplies: +5 V @336 mA max
Dimensions: 132 H x 220 mm W (5.2 x 8.7")
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -20 to 70°C (-4 to 175°F)
Humidity: 5 to 90% RH non-condensing
Accessories
