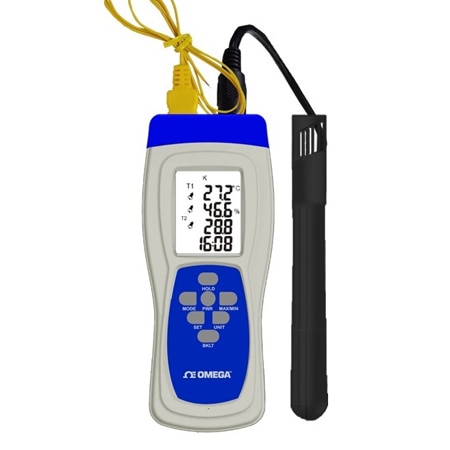

Handheld Temperature/Humidity Meter with SD Card Data Logger
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
- New compact hand held size measures and records single thermocouple K type with 1 meter remote temperature and relative humidity sensor probe.
- Applying to duct measurements or harsh environment.
- Quick response and high accuracy single input thermocouple and extend TRH probe.
- Relative function to compare the reference temperature per second.
- Backlight function for working in dark area.
- Hold function: Freeze current readings on LCD.
- Maximum/Minimum/Average: Record since powered on.
- Auto power off: Save power energy when not used. Enable to disable the function.
- Temperature unit: Switchable.
- Display T1 (K), T2 (Remote TRH), T1-T2, T1 REL, T2 REL with Time and Date.
- Supplied SD card capacity: 1GB to 8GB.
- Hi / Lo Alarm Functions on T1, T2, and RH
RHXL5SD Model Options
View all modelsEdit these specs to order a different model. Not all combinations are valid. Options compatible with previous selections will be in bold.
*Highlighted options are not compatible. Please select a different combination.
Input Type
Maximum Temperature Measurement
Display Type
Accuracy Value
Supply Power
Features
The RHXL5SD is a low cost, high performance handheld temperature and humidity meter with data logging capability. It offers a four variable display to show the temperature and humidity form a handheld probe and a separate K type thermocouple connected via a standard SMP type miniature connector to the T2 input along with a real time clock. High and Lo alarms can be set to T1, T2, and RH inputs. The temperature/humidity probe uses a semiconductor and polymer capacitive sensor. Because the RHXL5SD is microprocessor-based, it can make full use of the portability, reliability, and large storage capacities that SD memory cards offer. Measurements can be made automatically at any sampling rate between 5 seconds and 1 hour, or manually. Data is downloaded directly from the SD card.
RHXL5SD includes Meter, 9V battery, Universal AC/9V Power Supply and plug adapters, Calibration Certificate, K-type thermocouple, Combination Temperature/Humidity Probe, 8G SD Card, and hard black carrying case
RHXL5SD includes Meter, 9V battery, Universal AC/9V Power Supply and plug adapters, Calibration Certificate, K-type thermocouple, Combination Temperature/Humidity Probe, 8G SD Card, and hard black carrying case
Is the accuracy of the RH +/- 0.3%
The RH accuracy is +/- 2.5% when the instrument is in a 25C, < 70% RH ambient environment. Outside this ambient environment the RH accuracy is +/- 5%. The Type K Thermocouple input accuracy is +/- 0.3% of reading +1.0 C.
Date published: 2019-11-22
Will I damage the remote temperature probe if I expose it to a temperature of 70 - 75 C?
The remote probes maximum exposure temperature is 60C so if it is exposed above this temperature failure could occur or de-calibration.
Date published: 2021-02-22
AM I reading this right, are both the humidity probe and the TC probe 1 meter long cables, or is that only the TC and not the RH probe? It i shard to see from the photo, the RH probe looks very short. Thanks.
Thank you for your inquiry. Both the Temperature/Relative Humidity Probe and the Thermocouple Probe are 1 meter long.
Date published: 2020-10-07
Does this interface directly with Excel? How do you download and recall the data from the data logger? Do I require specialized software that I must purchase from you'all?
Thank you for your question.
You do not require any special software for this product as it saves all the data on an SD card as a CSV file. These files can then be opened and red by Microsoft Excel.
Date published: 2020-10-06
