Ceramic Beaded Thermocouple Elements

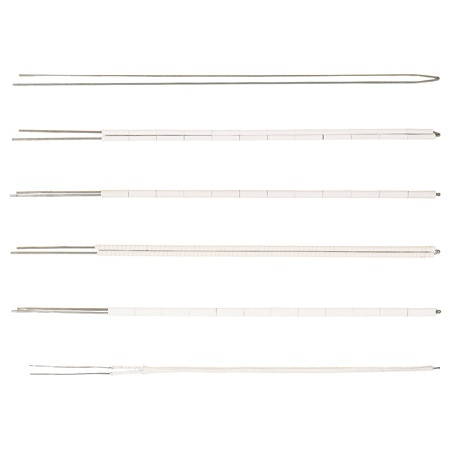

Ceramic Beaded and Bare Wire Thermocouple Elements for Head and Well Assemblies
Volume discounts available
Volume Discount Schedule
| Quantity | Price each |
|---|---|
| 1-9 | $880.51 |
| 10-24 | $836.48 |
| 25-99 | $792.46 |
| 100-499 | $748.43 |
| 500-999 | $704.41 |
| 1000+ | $660.38 |
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
- Available in Type J, K, T and E Thermocoupes
- High Temperature Ceramic Insulators to Withstand Temperatures over 2000 Degrees F
- Standard 12" Length with Other Lengths Available
DH-1-20-K-788 Model Options
View all modelsEdit these specs to order a different model. Not all combinations are valid. Options compatible with previous selections will be in bold.
*Highlighted options are not compatible. Please select a different combination.
Probe Diameter
Mounting Style
Termination Connection Type
Thermocouple Type
Wire Gauge
Type of Sensor
Application
Resistance or Output Type
Electrical Connection Type
Additional Features
Junction Type
Process Connection
Application of Sensor
- Measurement Units °C
- Measurement Type Air/Gas Temperature
OMEGA™ thermocouples are precise temperature measuring elements made of the highest grade materials available. They are carefully assembled according to the highest standards set by the industry. OMEGA’s thermocouples are checked against standard temperature-millivolt curves to assure calibration accuracy and must match accepted performance curves which set the standard ANSI accuracy limits.
Price Adders
View the Thermocouple Accuracy and Color Code charts
| Type of Element | AWG Wire Size | Insulator Used | Type J Iron- Constantan | Type K CHROMEGA™- ALOMEGA™ | Type T Copper- Constantan | Type E CHROMEGA™- Constantan |
| Bare Wires (no Insulators) | 8 14 20 24 | None | Bare-8-J-12 Bare-14-J-12 Bare-20-J-12 Bare-24-J-12 | Bare-8-K-12 Bare-14-K-12 Bare-20-K-12 Bare-24-K-12 | Bare-8-T-12 Bare-14-T-12 Bare-20-T-12 Bare-24-T-12 | Bare-8-E-12 Bare-14-E-12 Bare-20-E-12 Bare-24-E-12 |
| with Single Hole Round Insulators | 8 14 20 24 | SH-1-8 SH-1-14 SH-1-20 SH-1-24 | SH-1-8-J-12 SH-1-14-J-12 SH-1-20-J-12 SH-1-24-J-12 | SH-1-8-K-12 SH-1-14-K-12 SH-1-20-K-12 SH-1-24-K-12 | SH-1-8-T-12 SH-1-14-T-12 SH-1-20-T-12 SH-1-24-T-12 | SH-1-8-E-12 SH-1-14-E-12 SH-1-20-E-12 SH-1-24-E-12 |
| with Double Hole Round Insulators | 8 14 20 24 | DH-1-8 DH-1-14 DH-1-20 DH-1-24 | DH-1-8-J-12 DH-1-14-J-12 DH-1-20-J-12 DH-1-24-J-12 | DH-1-8-K-12 DH-1-14-K-12 DH-1-20-K-12 DH-1-24-K-12 | DH-1-8-T-12 DH-1-14-T-12 DH-1-20-T-12 DH-1-24-T-12 | DH-1-8-E-12 DH-1-14-E-12 DH-1-20-E-12 DH-1-24-E-12 |
| with Single Hole Fish-Spine Insulators | 8 14 20 | FS-260-8 FS-200-14 FS-110-20 | FS-260-8-J-12 FS-200-14-J-12 FS-110-20-J-12 | FS-260-8-K-12 FS-200-14-K-12 FS-110-20-K-12 | FS-260-8-T-12 FS-200-14-T-12 FS-110-20-T-12 | FS-260-8-E-12 FS-200-14-E-12 FS-110-20-E-12 |
| with Double Hole Oval Insulators | 8 14 20 | OV-1-8 OV-1-14 OV-1-20 | OV-1-8-J-12 OV-1-14-J-12 OV-1-20-J-12 | OV-1-8-K-12 OV-1-14-K-12 OV-1-20-K-12 | OV-1-8-T-12 OV-1-14-T-12 OV-1-20-T-12 | OV-1-8-E-12 OV-1-14-E-12 OV-1-20-E-12 |
Price Adders
| Ceramic Insulator Type | AWG | Add'l Price per 6" |
| BARE | 8 | $5.00 |
| BARE | 14 | $3.00 |
| BARE | 20 | $3.00 |
| BARE | 24 | $3.00 |
| SH | 8 | $10.00 |
| SH | 14 | $4.00 |
| SH | 20 | $4.00 |
| SH | 24 | $4.00 |
| DH | 8 | $10.00 |
| DH | 14 | $4.00 |
| DH | 20 | $4.00 |
| DH | 24 | $4.00 |
| FS | 8 | $10.00 |
| FS | 14 | $4.00 |
| FS | 20 | $4.00 |
| OV | 8 | $10.00 |
| OV | 14 | $4.00 |
| OV | 20 | $4.00 |
