Chilled Mirror Dew Point/Temperature Transmitter

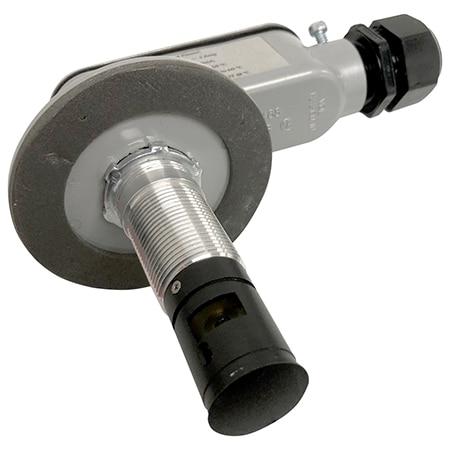

Duct Mounted Chilled Mirror Hygrometer (Dewpoint only)

(0)

Data Sheet (PDF)

$1,870.00

Item# CMDP-D

QTY

Added to Your Shopping Cart

In stock

Lead Time (If not in stock): 4 weeks

+ Add to Project List

Precision Accuracy
Two 4-20mA outputs (configurable)
Durable
Fast Response Time
Duct/Pipe/Wall Configuration
Air temperature option for Wall Configuration
Automatic balance function for the mirror/optical loop circuitry

View Specs

CMDP-D Model Options

View all models

Edit these specs to order a different model. Not all combinations are valid. Options compatible with previous selections will be in bold.

*Highlighted options are not compatible. Please select a different combination.

Input Type

Input Ranges

Additional Feature

Output Type

Supply Voltage Type

Specs

Edit Model Options

Accuracy Dew point +/-0.5C Temperature +/-0.5C
Air Velocity 50 to 900m/min
Hysteresis None
Operating Temperature -40 °C to +60 °C
Pressure 2 ATM
Repeatability +/- 0.05°C
Resolution 0.01%
Supply Voltage 24Vdc +/-3V @ 1.0A
Weight < 5lbs.

The CMDP-Series is a family of low-cost dew point chilled mirror transmitter that can be configured as a duct, wall, or pipe unit. The unit offers stable, accurate and repeatable measurements that are traceable to NIST. Available air temperature option is available on the Wall configuration. Settable service cycles for balancing and cleaning the mirror. The CMDP is a primary measurement using a fundamental principle to measure the dew point very accurately. Simple maintenance to cleaning the mirror requires using a wetted cotton swab to restore the transmitter to normal operation. Because of its construction, the customer can enjoy a long life of excellent performance.
