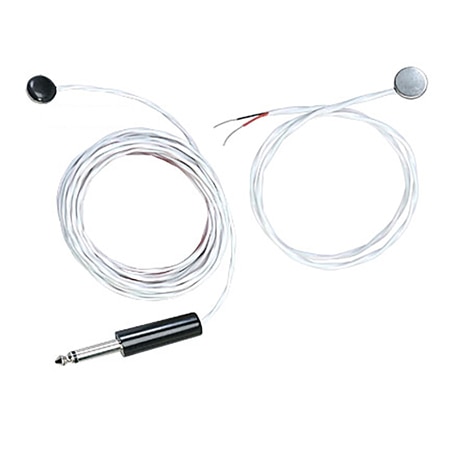

Glue-On Thermistor Surface Sensors with Coin Style SS Housing
Precision Thermistor Sensors for Surface Temperature Measurements
Volume discounts available
Volume Discount Schedule
| Quantity | Price each |
|---|---|
| 1-9 | $79.37 |
| 10-24 | $75.40 |
| 25-99 | $71.43 |
| 100-499 | $67.46 |
| 500-999 | $63.50 |
| 1000+ | $59.53 |
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
- Thermistor is Contained in a Stamped 300 Series Stainless Steel Housing and is Epoxy Encapulated
- Construction Provides Maximum Surface Contact
- Ideally Suited for Applications Such as Determining Heat Loss, Compressor Efficiency and Measureing Manufold Temperature
- The ON-909 is Available with Resistances of 2252 Ohms, 3000 Ohms, 5000 Ohms, 10,000 Ohms and 30,000 Ohms at 25°C
- Standard Accuracy of the ON-409 is ±0.1°C between 0 to 70°C and the Standard Accuracy of the ON-909 is ±0.2°C between 0 to 70°C
- Maximum Temperature: 100°C
ON-909-44004 Model Options
View all modelsEdit these specs to order a different model. Not all combinations are valid. Options compatible with previous selections will be in bold.
*Highlighted options are not compatible. Please select a different combination.
Nominal Resistance
Accuracy
Cable Length
Category
Process Temperature Range
Sensor Application
Cable Insulation
Termination Connection Type
Precision Thermistor Sensors for Surface Temperature Measurements"
I purchased ON-909-44004-80 to used it in my data logger to measure automotive battery temperature. I need to do scaling so i can get a proper value. Can you tell me how to do the scaling? Please note that my reading unit would be in Fahrenheit 65 to 100.
Please see link to the Thermistor Resistance vs. Temperature information you requested. https://www.omega.co.uk/temperature/Z/pdf/z256-257.pdf
Date published: 2020-04-06
