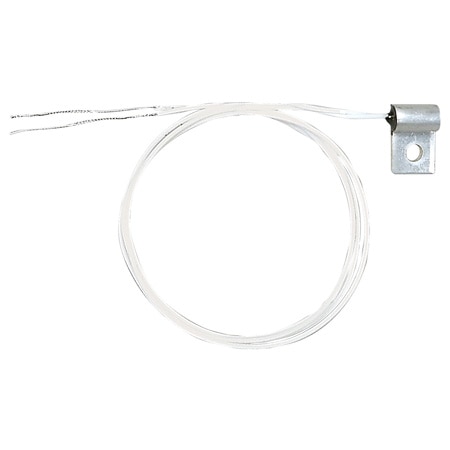

Bolt-On Thermistor Surface Sensors with Aluminum Flag Housing

Flag-Mount Surface Mount Thermistor Sensor

(0)

Data Sheet (PDF)

$71.11

Item# ON-930-44005

Volume discounts available

Volume Discount Schedule

Quantity	Price each
1-9	$71.11
10-24	$67.55
25-99	$64.00
100-499	$60.44
500-999	$56.89
1000+	$53.33

QTY

Added to Your Shopping Cart

In stock

Lead Time (If not in stock): 6 weeks

+ Add to Project List

Please refer to replacement part number ON-931-44005-40
Aluminum Housing Provides Rapid Heat Transfer Between the Sensor and Mounting Surface for Accurate Measurements. Housing Includes a Clearance Hole for a #4 Mounting Screw or Can be Cemented or Epoxied to Flat Surfaces.
Available with resistances of 2252 Ohms, 3,000 Ohms, 5000 Ohms, 10,000 Ohms or 30,000 Ohms at 25°C
Standard Accuracy is ±0.2°C from 0 to 70°C, Optional Accuracy of ±0.1°C from 0 to 70°C is Available.
Maximum Temperature Range 100°C
Available with 12" (305mm) long PFA Insulated Wires or 40" (1 meter) Long PFA Insulated and Jacketed Cables.

View Specs

ON-930-44005 Model Options

View all models

Edit these specs to order a different model. Not all combinations are valid. Options compatible with previous selections will be in bold.

*Highlighted options are not compatible. Please select a different combination.

Nominal Resistance

Category

Process Temperature Range

Sensor Application

Accuracy

Cable Insulation

Termination Connection Type

Cable Length

Specs

Edit Model Options

This surface sensor is designed for a variety of temperature measurement applications. It represents a low-cost, fast response sensor and lends itself to easy mounting on flat surfaces.
