Rangeable, Differential Pressure Transmitters with Display
-160 to 160 inH2O, Differential Pressure
Volume discounts available
Volume Discount Schedule
| Quantity | Price each |
|---|---|
| 1-9 | $958.24 |
| 10-24 | $910.33 |
| 25-49 | $891.16 |
| 50-99 | $852.83 |
| 100+ | $833.67 |
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
- 0.075% Accuracy
- Linear or Square Root Output
- Adjustable Pulsation Dampening
- LCD Displays Either Process Variable, mA, or %
- Nineteen User Selectable Engineering Units
- IP67 316 SS Enclosure
PX3005-160WDWBI Model Options
View all modelsEdit these specs to order a different model. Not all combinations are valid. Options compatible with previous selections will be in bold.
*Highlighted options are not compatible. Please select a different combination.
Pressure Range
Pressure Type
Accuracy Class
Accuracy Value(compensated range)
Output Signal
Electrical Output
Pressure Port Size
Pressure Port Type
Connection/Termination
Operating Temperature Range
Additional Features

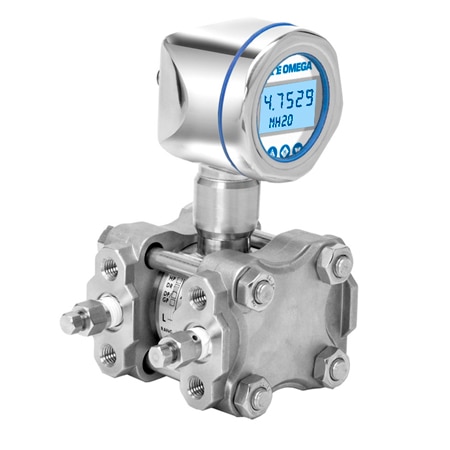

The Omega differential PX3005-DIFF is a compact, rangeable, pressure transmitter ideal for monitoring pressures in process automation, hydraulic systems, compressors, pumps, and in tank level applications where consistent, reliable pressure measurement is essential. The PX3005-DIFF utilizes a unique encapsulation construction of a MEMs piezoresistive pressure sensor coupled to an advanced microprocessing to provide superior accuracy and performance.
The unique construction enables high line pressure operations and superior protection from pressure overloads. The rugged 316 stainless-steel enclosure is IP67 rated making it suitable for wash down environments. A 5-digit backlit LCD allows for a full precision representation of process variable. Available in ranges from 1 to 1,500 psi, the intelligent transmitter module allows for configuration of the 4 to 20 mA signal, display of input or output, and choice of 19 measurement units. The output signal can be adjusted to re-arrange the transmitter or “tare” unwanted fluid head preloads. Rangeability is capable of adjusting zero and span are from -100 to 100% FS URL (Upper Range Limit) with a minimum span of 30% URL. This means a 15 psi transducer can have the zero set between -15 to FS 15 psi. For example, zero could be set for -15 psi and maximum 15 psi so the output would be 4 mA at -15 psi, midpoint 12 mA would be 0 psi and 20 mA would be 15 psi.

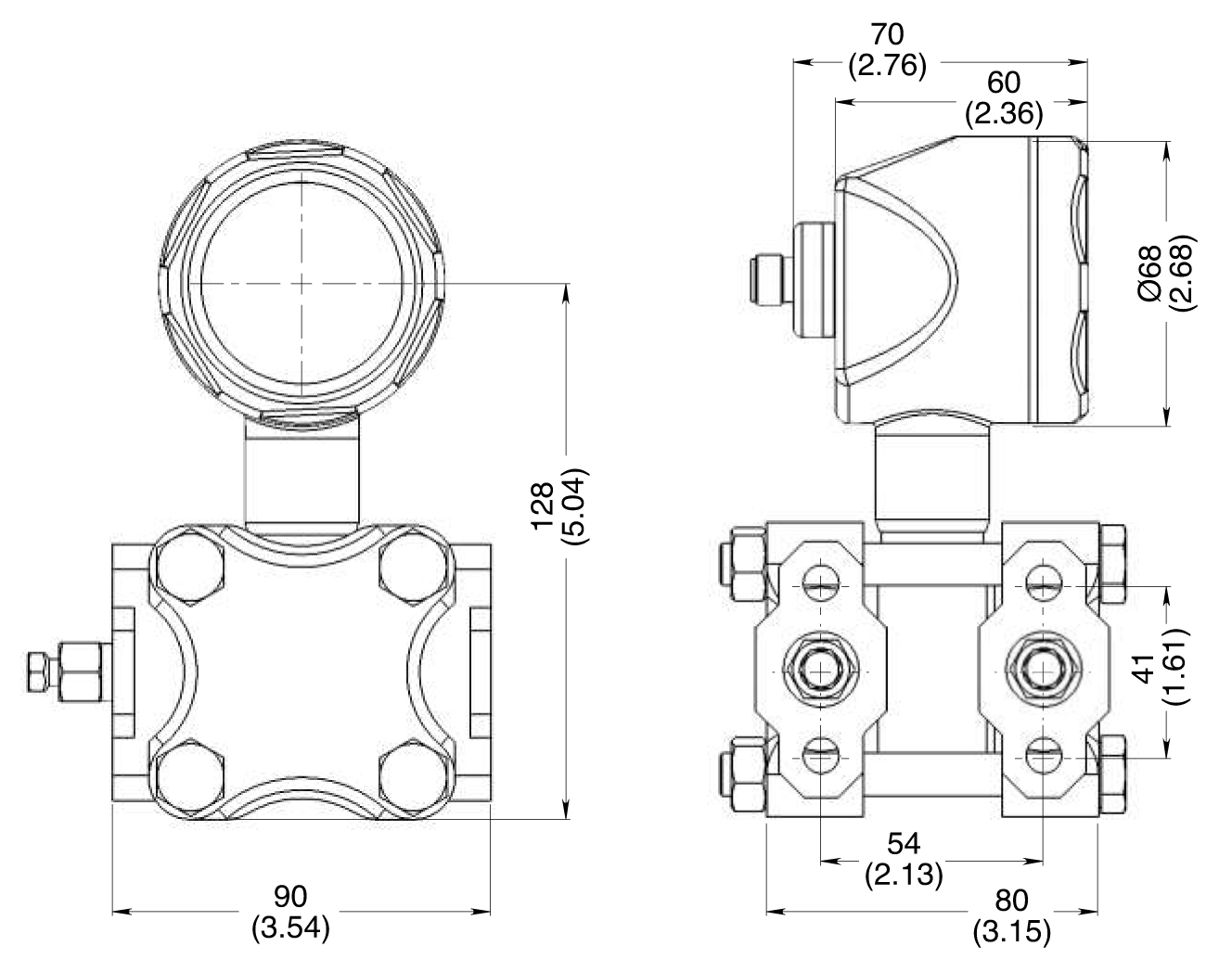

Dimensions: mm (inches)
Specifications
Turndown = nominal range of the device / set span of device
EXAMPLE: a PX3005-1KWDWBI with set span of 500"H2O TD = 1000"H2O/500"H2O = 2
Accuracy (NLHR, 20°C ±5°C): ±0.075TD% SPAN
(Square root output accuracy is 1.5 times linear output accuracy)
Long Term Stability: ±0.2% URL/60 months
Ambient Temperature Effects -20 to 80°C (-4 to 176°F): ±(0.1 +0.1TD)% SPAN
Static Pressure Effects: Effect on zero ±0.15TD % SPAN/10MPa (1450 psi); Effect on full scale ±0.2% SPAN/10 MPa (1450 psi)
Power Supply Effects: ± 0.005TD% SPAN/V (Zero and Span)
Mounting Position Effects: Install error less than 400Pa (1.60” H2O) can be corrected by PV = 0 reset
Vibration Effects: GB/T 1827.3/IEC61298-3 tests, 20g (5 to 2000 HZ, max <±3 mm), <0.1% URL
Supply Voltage (U): 10.5 to 55VDC
Output Signal: 4 to 20mA Two wire, linear or square root output selectable
Sensor Response Time: 200 mS
Damping Time: Selectable, 0 to 100 S
Load Resistance Ω: <(U-10.5)/0.021
Transmission Distance: < 1000 m
Power Consumption: 500mW (20.8mA output @ 24VDC)
Operating Temperature: -20 to 70°C (-4 to 160°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Media Temperature: -40 to 120°C (-40 to 250°F)
Environmental Rating: IP67
Media: Fluids and gasses compatible with 316 SS
Process Connection/Material: ¼" -18NPT F/316 SS
Electrical Connection: 4 pin male M12
Isolating Diaphragm: 316L SS
Sensor Fill Fluid: Silicone Oil
Sensor Seal: O-ring, FKM
Housing Material: 316 SS
Weight:
Net Weight: about 3kg (without mounting bracket and process connection adaptor)
Range Limit Table
EMC Environment:
GB/T 9254/CISPR22
GB/T 17626.2/IEC61000-4-2
GB/T 17626.3/IEC61000-4-3
GB/T 17626.8/IEC61000-4-8
GB/T 17626.4/IEC61000-4-4
GB/T 17626.5/IEC61000-4-5
GB/T 17626.6/IEC61000-4-6
The unique construction enables high line pressure operations and superior protection from pressure overloads. The rugged 316 stainless-steel enclosure is IP67 rated making it suitable for wash down environments. A 5-digit backlit LCD allows for a full precision representation of process variable. Available in ranges from 1 to 1,500 psi, the intelligent transmitter module allows for configuration of the 4 to 20 mA signal, display of input or output, and choice of 19 measurement units. The output signal can be adjusted to re-arrange the transmitter or “tare” unwanted fluid head preloads. Rangeability is capable of adjusting zero and span are from -100 to 100% FS URL (Upper Range Limit) with a minimum span of 30% URL. This means a 15 psi transducer can have the zero set between -15 to FS 15 psi. For example, zero could be set for -15 psi and maximum 15 psi so the output would be 4 mA at -15 psi, midpoint 12 mA would be 0 psi and 20 mA would be 15 psi.
Dimensions: mm (inches)
Specifications
Turndown = nominal range of the device / set span of device
EXAMPLE: a PX3005-1KWDWBI with set span of 500"H2O TD = 1000"H2O/500"H2O = 2
Accuracy (NLHR, 20°C ±5°C): ±0.075TD% SPAN
(Square root output accuracy is 1.5 times linear output accuracy)
Long Term Stability: ±0.2% URL/60 months
Ambient Temperature Effects -20 to 80°C (-4 to 176°F): ±(0.1 +0.1TD)% SPAN
Static Pressure Effects: Effect on zero ±0.15TD % SPAN/10MPa (1450 psi); Effect on full scale ±0.2% SPAN/10 MPa (1450 psi)
Power Supply Effects: ± 0.005TD% SPAN/V (Zero and Span)
Mounting Position Effects: Install error less than 400Pa (1.60” H2O) can be corrected by PV = 0 reset
Vibration Effects: GB/T 1827.3/IEC61298-3 tests, 20g (5 to 2000 HZ, max <±3 mm), <0.1% URL
Supply Voltage (U): 10.5 to 55VDC
Output Signal: 4 to 20mA Two wire, linear or square root output selectable
Sensor Response Time: 200 mS
Damping Time: Selectable, 0 to 100 S
Load Resistance Ω: <(U-10.5)/0.021
Transmission Distance: < 1000 m
Power Consumption: 500mW (20.8mA output @ 24VDC)
Operating Temperature: -20 to 70°C (-4 to 160°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Media Temperature: -40 to 120°C (-40 to 250°F)
Environmental Rating: IP67
Media: Fluids and gasses compatible with 316 SS
Process Connection/Material: ¼" -18NPT F/316 SS
Electrical Connection: 4 pin male M12
Isolating Diaphragm: 316L SS
Sensor Fill Fluid: Silicone Oil
Sensor Seal: O-ring, FKM
Housing Material: 316 SS
Weight:
Net Weight: about 3kg (without mounting bracket and process connection adaptor)
Range Limit Table
| Nominal Value | Minimum Span | UPPER (URL) | LOWER (LRL) | Static pressure limit | Hi Side Over Range Limit | Lo Side Over Range Limit | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mbar | "H2O | mbar | "H2O | mbar | "H2O | mbar | "H2O | bar | psi | bar | psi | bar | psi |
| 60 | 25 | 0.02 | 0.8 | 60 | 25 | -60 | -25 | 250 | 3600 | 250 | 3600 | 160 | 2300 |
| 400 | 160 | 0.04 | 1.6 | 400 | 160 | -400 | -160 | 400 | 5750 | 250 | 3600 | 160 | 2300 |
| 2500 | 1000 | 0.25 | 10 | 2500 | 1000 | -2500 | -1000 | 400 | 5750 | 250 | 3600 | 160 | 2300 |
| bar | psi | bar | psi | bar | psi | bar | psi | bar | psi | bar | psi | bar | psi |
| 10 | 150 | 0.1 | 1.5 | 10 | 150 | -5 | -70 | 400 | 5750 | 250 | 3600 | 160 | 2300 |
| 30 | 400 | 0.3 | 4 | 30 | 400 | -5 | -70 | 400 | 5750 | 250 | 3600 | 160 | 2300 |
| 100 | 1500 | 1 | 15 | 100 | 1500 | -5 | -70 | 400 | 5750 | 250 | 3600 | 160 | 2300 |
EMC Environment:
GB/T 9254/CISPR22
GB/T 17626.2/IEC61000-4-2
GB/T 17626.3/IEC61000-4-3
GB/T 17626.8/IEC61000-4-8
GB/T 17626.4/IEC61000-4-4
GB/T 17626.5/IEC61000-4-5
GB/T 17626.6/IEC61000-4-6
Rated 5 out of
5
by
Allen O from
Excellent product!
Easy setup, easy calibration, excellent build quality. An outstanding, cost effective transmitter.
Date published: 2020-04-23
In the data specs, is "TD" referring to "Total Differential"?
TD means Total Differential
Date published: 2020-12-09
Of the ports that are marked (H) and (L), which of the two is the (IN) port and which one is the (OUT) port.?
This is not a flow through sensor. The pressure applied to each port react on a internal diaphragm. The unit internally calculates the differential between the two applied pressures and output a signal represents this differential.
Date published: 2022-10-13
For tank level measurements with high solids content fluids do you recommend an additional isolation diagram to be installed or is this unnecessary?
We recommend using an isolation diaphragm in this type of application. A high content of solids can easily clog the input port connections on this sensor.
Date published: 2022-01-11
How rangeable are these transmitters? Can I do a -50 to +50 inH2O with the transmitter that does -160 to 160 inH2O (model PX3005-160WDWBI) Thanks much for any responce.
The PX3005 series has a very large turndown capability and can easily be set for a -50 to +50 inch of water range. In fact, the minimum span can be set as low as 1.6 inches of water. Thank you for contacting Omega and please feel free to contact us again if you have any additional questions.
Date published: 2019-11-18
what is the recommended calibration interval of this unit ?
Thank you for your inquiry, we don't make recommendations on calibration intervals. We can state that most of our customers calibrate their sensors annually.
Date published: 2022-05-11
Just to confirm. The "WET/WET" means it is measuring pressure differential in fluid not in gasses. Correct?
Thank you for your inquire
The units that state wet wet can be used in liquid or gas.
Date published: 2020-12-18
I can range the -1000 to 1000 "H2O DP Transmitter to 0-278 "H2O. correct?
Yes they can. These unit are actually scalable so you can turn down the range of the unit do give you the full 4 to 20mA output signal over 0 to 278" wc.
Date published: 2021-02-09
What is the size of mounting screws (female threads)? Is it metric or imperial?
It would imperial. The pressure port is ¼-18 NPT.
Date published: 2022-08-24
