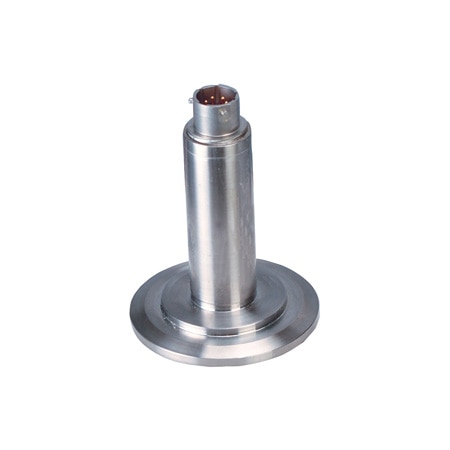

The PX409S Series sanitary pressure transducers and sanitary pressure transmitters are made using our proven micromachined silicon process. They are available with 1½ or 2 in sanitary fittings and are designed for long reliable service in pressure or level CIP applications in food processing, beverage or bio/ pharmaceutical applications as well as industrial applications that require a rugged, high accuracy transducer. The micro-machined silicon sensor provides a very stable transducer with exceptional high accuracy of 0.08% and a broad compensated range of -4 to 85°C (25 to 185°F). The modular construction allows for fast delivery of most configurations and fittings. Vacuum models measure negitive gage pressure, output is zero at ambient pressure and increases with decreasing pressure. Compound Gage models measure +/- gage pressure and have a corresponding bi-directional voltage outputs. 4-20 mA models have zero pressure (ambient) set at 12 mA. The OMEGA PX409S Series has been issued 3-A symbol authorization and meets the requirements of the 3-A Sanitary Standards.
0.08% Best Straight Line (Linearity, Hysteresis and Repeatability combined)
Compound Gage models calibrated in positive direction only
5-point NIST traceable calibration with zero and span values, calibrated in horizontal direction
Operating Temperature Range:
-15 to 115°C (-5 to 240°F)
Compensated Temperature Range:
-4 to 85°C (25 to 185°F)
Zero and Span Combined
1% over 55.6°C (100°F) range
2% over 55.6°C (100°F) range
Min Isolation Between Case and Output Terminations:
100 MΩ @ 50 Vdc
1 million, minimum
Long Term Stability (1-Year):
±0.1% FS typ.
50 g, 11 ms half sine shock, (under test)
±20 g (under test)
DC to 1 kHz typical
NEOBEE M5 Food grade CE Compliant:
Meets industrial emissions and immunity standard IEC61326
IP65 or IP67 depending upon electrical termination
1½ and 2 in Tri-Grip™ (Tri-Clamp® compatible) fitting: 600 psi using suitable clamp
4 x rated pressure to maximum rated flange pressure
6 x rated pressure to a maximum of 2000 psi (not in clamp)
285 gm (10 oz)
±0.5% FS typical, 1% max (For ranges ≤2.5 psi ±1% typ 2% max)
±0.5% FS typical, 1% max (For ranges ≤2.5 psi, ±1% typ 2% max)
Calibrated in vertical position with fitting down
10 mV/V OUTPUT
10 mV/V; Ratiometric 5 to 10 Vdc
AMPLIFIED VOLTAGE OUTPUT
0 to 5 Vdc:
10 to 30 Vdc @ 10 mA
0 to 10 Vdc:
15 to 30 Vdc @ 10 mA
4 to 20 mA
9 to 30 Vdc max loop res Ω = (Vs-9)x50 [9 to 20 Vdc above 105°C (229°:F)]
1.5' fitting models are featured in the tables below.
For 2' fitting models change S15 to S20 in model number.
For the full selection see the Part Number Builder below to select the model and options required to meet your requirements.
