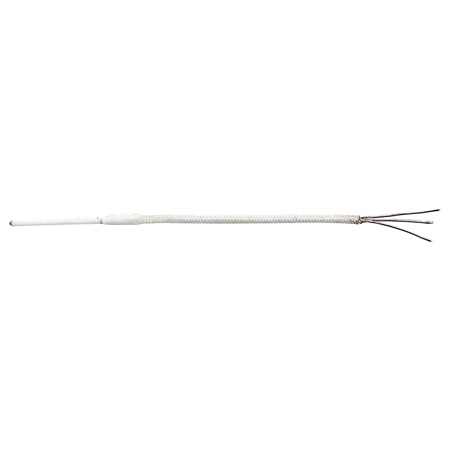

STYLE 3 RTD, 4 WIRE , 60" LEAD WIRES
RTD Elements with 36 Inch Lead Wire - 2, 3 and 4 Wire Lead Configurations
Volume discounts available
Volume Discount Schedule
| Quantity | Price each |
|---|---|
| 1-9 | $100.15 |
| 10-24 | $95.14 |
| 25-99 | $90.14 |
| 100-499 | $85.13 |
| 500-999 | $80.12 |
| 1000+ | $75.11 |
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
- Made from 100 Ω, .00385 alpha Elements
- Class A Tolerance (+/- .06% at 0° C)
- 2-, 3- or 4-Wire Welded Lead Configurations
- 26 Gage, 36" Long Stranded Nickel-Plated Copper Leads
- Wire Insulation Choices: PFA, Fiberglass or No Insulation
- Stripped Wire Termination Standard
COMMON OPTIONS - Miniature or Standard Size Connector or Terminal Lug Termination
- Other Elements Available: Alternative Tolerances, Ros, and/or Alpha Values.
RTD-3-1PT100KN815-72-T Model Options
View all modelsEdit these specs to order a different model. Not all combinations are valid. Options compatible with previous selections will be in bold.
*Highlighted options are not compatible. Please select a different combination.
Application
Temperature Accuracy
Number of Wires
Mounting Style
Maximum Temperature Measurement
Cable Length
Additional Features
Termination Connection Type
Resistance or Output Type
All of OMEGA’s RTD elements can be supplied with additional lead wire attached to existing leads. Longer leads create more flexibility for use in many applications.
Pricing for several popular models is shown in the ordering table below. Use the Part Number Builder to obtain pricing for other models.
For complete product specifications see the Related Links section at the bottom of this page.
Pricing for several popular models is shown in the ordering table below. Use the Part Number Builder to obtain pricing for other models.
For complete product specifications see the Related Links section at the bottom of this page.
What is the temperature rating on the epoxy joining the RTD to the lead wires? The RTD is a little curved, and I'd like to heat it slightly to straighten it out a bit.
The epoxy and wire insulation are rated to 260 deg C (500 deg F). We do not recommend heating the assembly beyond the rated temperature.
Date published: 2020-04-03
