STYLE 2 RTD, 3 WIRE 5/PK PFA

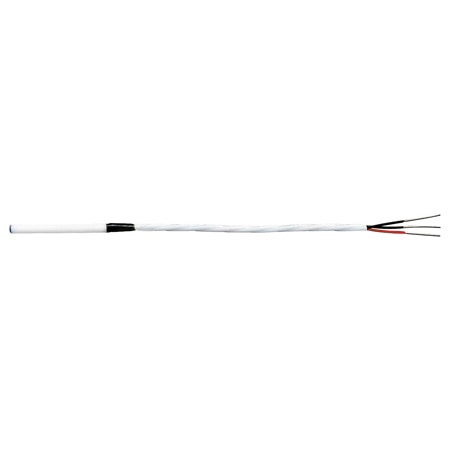

IEC STYLE 2 RTD 3 WIRES

$75.51

Item# RTD-2-1PT100KN2528-1M-T

Volume discounts available
Volume Discount Schedule
Quantity Price each
1-9 $75.51
10-24 $71.73
25-99 $67.96
100-499 $64.18
500-999 $60.41
1000+ $56.63

In stock

Lead Time (If not in stock): 6 weeks
IEC STYLE 2 RTD 3 WIRES RTD-2-1PT100KN2528-1M-T RTD-2-1PT100KN2528-1M-T
  • Made from 100 Ω, .00385 alpha Elements
  • Class A Tolerance (+/- .06% at 0° C)
  • 2-, 3- or 4-Wire Welded Lead Configurations
  • 26 Gage, 36" Long Stranded Nickel-Plated Copper Leads,
  • Wire Insulation Choices: PFA, Fiberglass or No Insulation
  • Stripped Wire Termination Standard

    COMMON OPTIONS
  • Miniature or Standard Size Connector or Terminal Lug Termination
  • Other Elements Available, eg, Alternative Tolerances, Ro, and/or alpha values.

RTD-2-1PT100KN2528-1M-T Model Options

View all models

Edit these specs to order a different model. Not all combinations are valid. Options compatible with previous selections will be in bold.

*Highlighted options are not compatible. Please select a different combination.

Application
Temperature Accuracy
Number of Wires
Maximum Temperature Measurement
Cable Length
Additional Features
Termination Connection Type
Pack Size
Cable Insulation
Color Code Standard
Resistance or Output Type
Electrical Connection Type
Minimum Temperature Measurement
Additional Feature
Wire Gauge
Junction Type
Thermocouple Type
Category
Nominal Resistance


All of OMEGA’s RTD elements can be supplied with additional lead wire attached to existing leads. Longer leads create more flexibility for use in many applications.

Pricing for several popular models is shown in the ordering table below. Use the Part Number Builder to obtain pricing for other models.
For complete product specifications see the Related Links section at the bottom of this page.
