Self-Adhesive Polyimide Fast Response Surface Thermocouples, IEC Color
Ready-Made Surface Thermocouple with Self-Adhesive Backing IEC - Package of 5
Volume discounts available
Volume Discount Schedule
| Quantity | Price each |
|---|---|
| 1-9 | $136.96 |
| 10-24 | $130.11 |
| 25-99 | $123.26 |
| 100-499 | $116.42 |
| 500-999 | $109.57 |
| 1000+ | $102.72 |
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
- Made with Class 1 Tolerance Wire
- Better than 0.3 second response time
- Rated to 175°C long term
- Intended for one-time placement on surface
SA1-JI-1M-SC Model Options
View all modelsEdit these specs to order a different model. Not all combinations are valid. Options compatible with previous selections will be in bold.
*Highlighted options are not compatible. Please select a different combination.
Thermocouple Type
Process Temperature Range
Sensor Application
Termination Connection Type
Cable Length
Minimum Temperature Measurement
Category
Cable Insulation
Color Code Standard
Mounting Style
Probe Diameter
Features

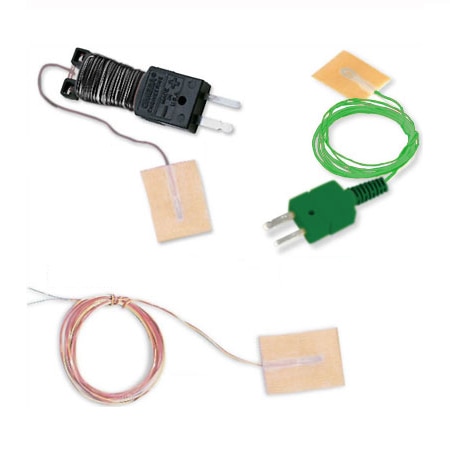

OMEGA's self-adhesive thermocouples have now been expanded to include the popular miniature connector with our patented wire caddy. The wire caddy provides a convenient way to store the thermocouple wire that is not needed for the application.
Specifications
Thermocouple Calibrations: J (Iron-Constantan), K (CHROMEGA™-ALOMEGA™), T (Copper Constantan), E (CHROMEGA™-Constantan)
Adhesive: Silicon based cement
Maximum Temperature: 175°C continuous
Minimum Temperature: -60°C continuous

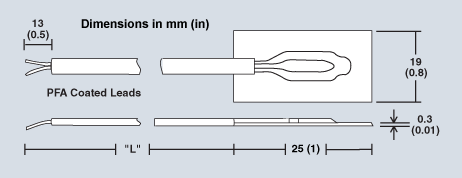

Pad Dimensions: 25 L x 19 W x 0.3 mm
Laminates: High temperature polymer, and fibreglass reinforced polymer layers
Wire: 0.25mm diameter conductors with PFA insulation
Note: 2 meters is the longest length available with wire caddy.
Specifications
Thermocouple Calibrations: J (Iron-Constantan), K (CHROMEGA™-ALOMEGA™), T (Copper Constantan), E (CHROMEGA™-Constantan)
Adhesive: Silicon based cement
Maximum Temperature: 175°C continuous
Minimum Temperature: -60°C continuous
Pad Dimensions: 25 L x 19 W x 0.3 mm
Laminates: High temperature polymer, and fibreglass reinforced polymer layers
Wire: 0.25mm diameter conductors with PFA insulation
| Model No.- IEC Color Code | Length metres | Insulation | |||
| T/C Type | Thermocouple with Stripped Leads | Thermocouple with mini plug and wire caddy | Thermocouple with mini plug and Strain Relief | ||
| J | SA1-JI-1M | SA1-JI-1M-SC | SA1-JI-1M-SRTC | 1 | PFA |
| K | SA1-KI-1M | SA1-KI-1M-SC | SA1-KI-1M-SRTC | 1 | PFA |
| T | SA1-TI-1M | SA1-TI-1M-SC | SA1-TI-1M-SRTC | 1 | PFA |
| J | SA1-JI-2M | SA1-JI-2M-SC | SA1-JI-2M-SRTC | 2 | PFA |
| K | SA1-KI-2M | SA1-KI-2M-SC | SA1-KI-2M-SRTC | 2 | PFA |
| T | SA1-TI-2M | SA1-TI-2M-SC | SA1-TI-2M-SRTC | 2 | PFA |
| J | SA1-JI-3M | n/a | SA1-JI-3M-SRTC | 3 | PFA |
| K | SA1-KI-3M | n/a | SA1-KI-3M-SRTC | 3 | PFA |
| T | SA1-TI-3M | n/a | SA1-TI-3M-SRTC | 3 | PFA |
