Self-Adhesive Silicone Molded Surface Thermocouples
Self-Adhesive Thermocouples Molded Silicone Design
Volume discounts available
Volume Discount Schedule
| Quantity | Price each |
|---|---|
| 1-9 | $59.49 |
| 10-24 | $56.52 |
| 25-99 | $53.54 |
| 100-499 | $50.57 |
| 500-999 | $47.59 |
| 1000+ | $44.62 |
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
- Ultra-Slim Silicone Rubber for Maximum Flexibility
- Self-Adhesive Foil Backing for Faster Response Time
- 2 Styles Available for Flat or Curved Surfaces
- Resistant to a Variety of Chemicals and Oils
- Temperature Range -50 to 200°C (-58 to 392°F)
- Available in J, K, T and E—Color Coded for Instant Thermocouple Recognition
- 24 AWG Stranded Thermocouple-Grade Lead Wire
- Stripped Leads Standard (A Variety of Connector Options Are Available)
SA2C-E-72 Model Options
View all modelsEdit these specs to order a different model. Not all combinations are valid. Options compatible with previous selections will be in bold.
*Highlighted options are not compatible. Please select a different combination or click the CONFIGURE button to build your own.
Thermocouple Type
Termination Connection Type
Cable Length
Color Code Standard
Additional Features
Mounting Style
Probe Length
Minimum Temperature Measurement
Features
Category
Process Temperature Range
Sensor Application
Cable Insulation
Probe Diameter

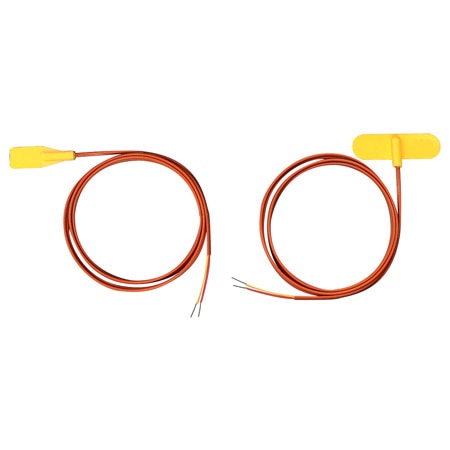

These sensors are available in 2 different mounting styles for flat or curved surfaces. The integral thermocouple sensor is bonded onto the inner surface of the self adhesive aluminum foil strip, which is provided for faster response times.
SPECIFICATIONS
Dimensions:
SA2C: 15 x 50 x 6.4 mm (0.59 x 1.97 x .25")
SA2F: 35 x 12 x 6.4 mm (1.38 x 0.47 x .25")
Wire: 24 AWG stranded thermocouple wire, 1 m (40") and 2 m (80") lengths; custom lengths available
View the Thermocouple Accuracy and Color Code charts
SPECIFICATIONS
Dimensions:
SA2C: 15 x 50 x 6.4 mm (0.59 x 1.97 x .25")
SA2F: 35 x 12 x 6.4 mm (1.38 x 0.47 x .25")
Wire: 24 AWG stranded thermocouple wire, 1 m (40") and 2 m (80") lengths; custom lengths available
View the Thermocouple Accuracy and Color Code charts
Rated 5 out of
5
by
NASCAR from
Perfect
Perfect sensors for our application. Works every time!
Date published: 2017-09-28
Rated 5 out of
5
by
D Holma from
Very Dependable
Dependable product that we are a repeat buyer off. We haven't had any field issues with these and will continue to purchase them
Date published: 2021-03-08
Rated 1 out of
5
by
ValeriaP from
Terrible accuracy
These are very slow response, and 20 degrees out from reference temperature.
Date published: 2021-02-19
Adhesive items often comes with shelf-life indication. Is there any shelf-life applicable to self-adhesive thermocouple products?
Thank you for your inquiry MJBAE. Shelf life of adhesive backing is one year, provided the product is stored in a climate-controlled environment and not stored near other chemicals and solvents.
Date published: 2022-08-11
Is it possible to buy only the self-adhesive silicone Molded to replace it if needed?
Thank you for your inquiry. Unfortunately we do not offer the self-adhesive molded section, only the complete assembly.
Date published: 2022-02-09
Is the self adhesive aluminum foil strip on the Silicone Molded Surface Thermocouples reusable?
The adhesive foil strip is made to be a permanent mount but if careful it could probably be removed and used again but with much less holding power.
Date published: 2021-08-16
Is the thermocouple junction electrically attached to the foil backing?
Thank you for your inquiry Daniel G. Yes it's because the junction is in contact with the adhesive pad.
Date published: 2022-08-11
