Ceramic Fiber or Silica Insulated Thermocouple Elements

High Temperature Nextel Insulated Thermocouple Elements

4.7

(6)

High Temperature Nextel Insulated Thermocouple Elements

Data Sheet (PDF)

$46.44

Item# XC-20-K-24

Volume discounts available

Volume Discount Schedule

Quantity	Price each
1-9	$46.44
10-24	$44.12
25-99	$41.80
100-499	$39.47
500-999	$37.15
1000+	$34.83

QTY

Added to Your Shopping Cart

In stock

Lead Time (If not in stock): 4 weeks

+ Add to Project List

Standard 0.3 m (12") Long Thermocouple Elements
Insulation Temperature Rating Up to 1200°C (2200°F)
Available In Type K, E and J Calibrations

View Specs

XC-20-K-24 Model Options

View all models

Edit these specs to order a different model. Not all combinations are valid. Options compatible with previous selections will be in bold.

*Highlighted options are not compatible. Please select a different combination.

Maximum Temperature Measurement

Cable Length

Additional Features

Thermocouple Type

Wire Gauge

Application

Resistance or Output Type

Electrical Connection Type

Minimum Temperature Measurement

Specs

Edit Model Options

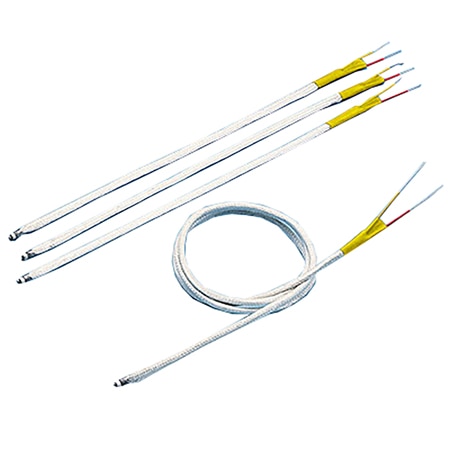

OMEGA ® Nextel Ceramic Insulated Thermocouples are easy-to-use precise temperature elements manufactured to meet the highest industry standards. The Nextel ceramic insulation is rated for 1200°C (2200°F) continuous use, or 1425°C (2600°F) short term. These highly versatile elements are the ideal solution for many high temperature applications. Combined with OMEGA's stock thermowells and industrial heads, a complete head and well assembly can be quickly assembled for fast delivery.

Available in 3 wire sizes, 14, 20 and 24 gage, the standard element configuration is 0.3 meters (12 inches) in length with a general purpose welded bead, exposed junction thermocouple, plus 13 mm (0.5") stripped end termination. Calibration types K (CHROMEGA ® -ALOMEGA ® ) E (CHROMEGA ® -Constantan), and J (Iron-Constantan) are stocked for fast delivery. For additional abrasion protection, stainless steel or Inconel overbraiding is available. Consult sales for additional information.

All Models

In Stock

Reviews

Rated 4 out of 5 by Dillon27 from Thermocouple I bought this a few weeks ago. I've had issue with the metal ring that holds the sheathing on but other than that it's been a good sturdy product.

Date published: 2017-08-16

Rated 5 out of 5 by RCPG from Braided Ceramic Very High Temperature This works just as promised on published specification sheet. Have used it multiple times. Never had any quality related issues.

Date published: 2022-01-21

Rated 5 out of 5 by Anonymous from Quick and easy order! Easy to order, front page allows for multiple part number entries so you can go to what you need quickly.

Date published: 2020-08-28

Rated 5 out of 5 by Rising Eagle from works great works like it should, nice heavy duty thermocouple.

Date published: 2018-09-05

Rated 4 out of 5 by jrw7 from Works as expected Good TC for kiln.....................................

Date published: 2018-07-02

Rated 5 out of 5 by AliIISc from XC-24-K and 5TC-TT-K-20-36 Using XC-24-K and 5TC-TT-K-20-36 since 8 and 1 year respectively. Former is very sturdy and insulation works fine till 800C for about a week of continuous exposure. ( max. we tried), Latter is very responsive to small temperature changes but amenable to insulation damage at high temperatures. Both has a very minimal (<0.1 degree) noise when used with standard recorder?controllers- Omega: OMDAQXL or Eurotherm: Nanodac or 2416 Overall a good and stable response.

Date published: 2018-05-18
