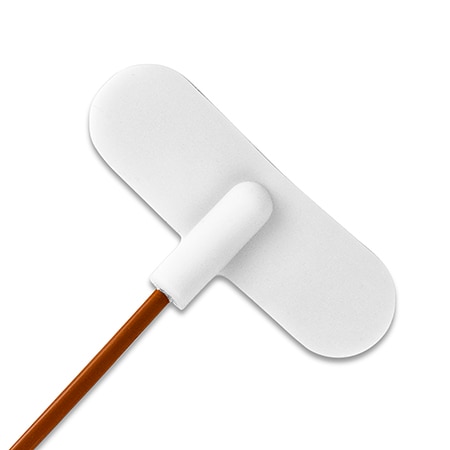

Adhesive Pad RTD Sensor
Adhesive pad RTD sensor, curved style, 40 in
Volume discounts available
Volume Discount Schedule
| Quantity | Price each |
|---|---|
| 1-9 | $74.50 |
| 10-24 | $70.78 |
| 25-99 | $67.05 |
| 100-499 | $63.33 |
| 500-999 | $59.60 |
| 1000+ | $55.88 |
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
- Made of silicone rubber for excellent flexibility
- Self-adhesive thin backing to increase response time
- Attach directly to clean surface for accurate temperature measurement
- Made for one-time placement on surface via self-adhesive pad
- Compact design, ideal for space constraints
- Temperature rating -50 to 200°C (-58 to 392°F)
- 100 Ω Platinum RTD element
- Wire is 26 AWG, stranded, PFA coated
- Intended for one-time placement on surface
SAPC-RTD-4-100-A-40 Model Options
View all modelsEdit these specs to order a different model. Not all combinations are valid. Options compatible with previous selections will be in bold.
*Highlighted options are not compatible. Please select a different combination.
Cable Length
Mounting Style
Category
Process Temperature Range
Sensor Application
Nominal Resistance
Accuracy
Number of Wires
Cable Insulation
Termination Connection Type
Additional Features
- Wire 26 AWG stranded PFA insulated
Omega's SAP-Series RTD’s are designed to take surface temperature measurements. These RTD sensors are ideal for both flat and curved surfaces. The integral RTD element is bonded onto the inner surface of the exposed silicone material, providing faster temperature response. These are available in 100 Ω element configuration. The temperature range is -50 to 200°C (-58 to 392°F). Applications include hot plate measurements, pipe measurements and these can be connected directly to instrument casings or motor housings to obtain an accurate temperature reading.
Can this sensor be placed on the human body to read human body surface temperature?
Hi Nzj21,
Thank you for the inquiry.
These are not designed for human contact / medical use. They are not suitable for this application.
Best regards
OMEGA
Date published: 2022-02-23
