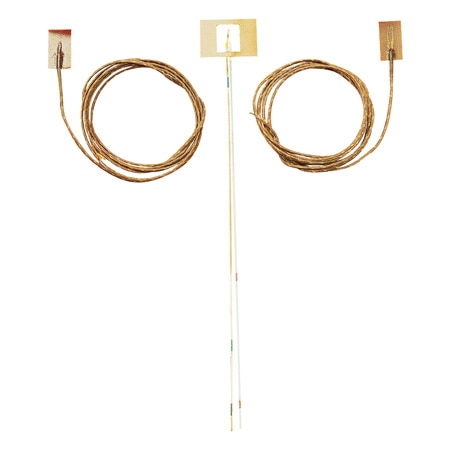

Cement-On Polyimide Fast Response Surface Thermocouples
Cement-On Surface T/C, Style 1-B, Type K, 40 in
Volume discounts available
Volume Discount Schedule
| Quantity | Price each |
|---|---|
| 1-9 | $127.51 |
| 10-24 | $121.13 |
| 25-49 | $118.58 |
| 50-99 | $113.48 |
| 100-199 | $110.93 |
| 200+ | $108.38 |
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
- New launch of RoHs3 compliant Style 1-B thermocouples (CO1-K-B)
- Response Time in Milliseconds
- Made from 0.0005" Foil and 0.010" Diameter Thermocouple Wire
- Very Low Thermal Inertia
- Four Calibrations "K", "E", "J" and "T"
- Four Styles Ideal for Surface Measurement
- Please contact for custom sensor length
CO1-K-B Model Options
View all modelsEdit these specs to order a different model. Not all combinations are valid. Options compatible with previous selections will be in bold.
*Highlighted options are not compatible. Please select a different combination.
Thermocouple Type
Process Temperature Range
Cable Insulation
Cable Length
Features
Category
Sensor Application
Termination Connection Type
Color Code Standard
Mounting Style
Probe Diameter

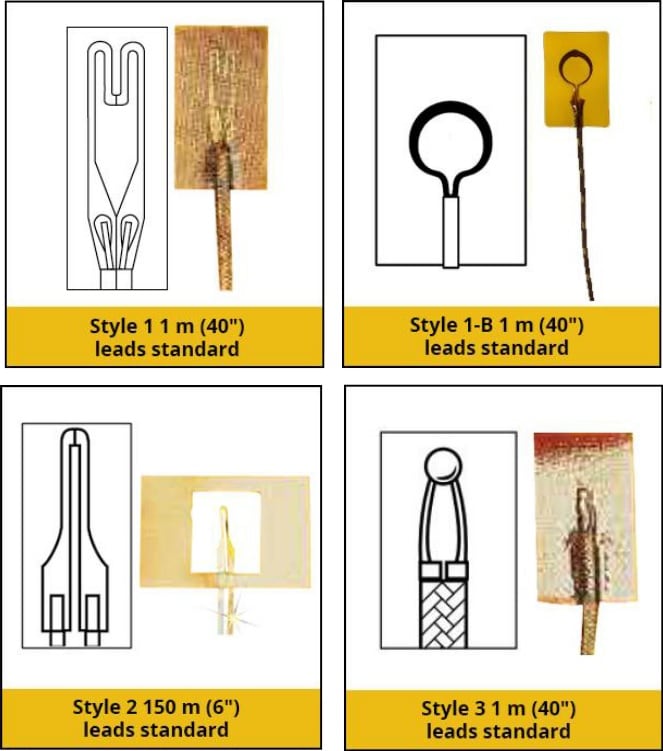

OMEGA introduces its Cement-On, fast response Foil Thermocouples for fast surface temperature measurement applications in three convenient styles. Styles 1, 2 are made from 0.005" thermocouple alloy & Style 1- B made by 0.008" by a special process where the butt welded thermocouple junction Styles 1, and 2 are flat, extremely low inertia construction and are an ideal means of measuring the temperature of both flat and curved metals, plastic and ceramic surfaces where very fast response is desired.
OMEGA's Cement-On Style 1,1-B and 2 Foil Thermocouples are fabricated from ANSI "Special Limits of Error" grade thermocouple materials in "K", "E" and "T" calibrations and yield accurate temperature indication when used with standard thermocouple instrumentation. Styles 1, 1-B and 2 have the fastest response. Style 3 is an economy version constructed from 0.010" diameter bead welded standard limit of error thermocouple wire. It should be used where extremely fast response is not essential.
| Model No. | Style | Thermocouple Type | Length | Maximum Temperature * | ||
| Continuous | 600 hr. | 10 hr. | ||||
| CO1-K | 1 | K-CHROMEGA™-ALOMEGA | 1m (40 in) | 260°C (500°F) | 315°C (600°F) | 370°C (700°F) |
| CO1-E | E-CHROMEGA™-Constantan | 1m (40 in) | 260°C (500°F) | 315°C (600°F) | 370°C (700°F) | |
| CO1-T | T-Copper - Constantan | 1m (40 in) | 150°C (300°F) | 205°C (400°F) | 260°C (500°F) | |
| CO1-K-B | 1-B | K-CHROMEGA™-ALOMEGA | 1m (40 in) | 260°C (500°F) | 315°C (600°F) | 370°C (700°F) |
| CO1-E-B | E-CHROMEGA™-Constantan | 1m (40 in) | 260°C (500°F) | 315°C (600°F) | 370°C (700°F) | |
| CO1-T-B | T-Copper - Constantan | 1m (40 in) | 150°C (300°F) | 205°C (400°F) | 260°C (500°F) | |
| CO2-K | 2 | K-CHROMEGA™-ALOMEGA™ | 150mm (6 in) | 540°C (1000°F) | 540°C (1000°F) | 650°C (1200°F) |
| CO2-E | E-CHROMEGA™-Constantan | 150mm (6 in) | 425°C (800°F) | 425°C (800°F) | 540°C (1000°F) | |
| CO2-T | T-Copper-Constantan | 150mm (6 in) | 150°C (300°F) | 150°C (300°F) | 260°C (500°F) | |
| CO3-J | 3 | J-Iron - Constantan | 1m (40 in) | 260°C (500°F) | 370°C (700°F) | 370°C (700°F) |
| CO3-K | K-CHROMEGA™-ALOMEGA™ | 1m (40 in) | 260°C (500°F) | 370°C (700°F) | 370°C (700°F) | |
| CO3-E | E-CHROMEGA™-Constantan | 1m (40 in) | 260°C (500°F) | 370°C (700°F) | 370°C (700°F) | |
| CO3-T | T-Copper-Constantan | 1m (40 in) | 205°C (400°F) | 370°C (700°F) | 370°C (700°F) | |
Rated 3 out of
5
by
none from
Good, but...
Does what they are supposed to.
COT-1
However the Small diameter wire is not the best for constant re-use.
Stripped wire length not good for the miniature connectors SMPW and HMPW.
if you want to use the little rubber grommet that comes with the connectors you will need to re-strip the bare ends.
And seeing as the price has gone up. The search is always on for an alternative.
Date published: 2015-12-17
Rated 5 out of
5
by
Leoman3 from
+Works great
really? Its a thermocouple, I like the stick on feature and it seems to work well.
Date published: 2016-11-07
Rated 5 out of
5
by
Ben Ha from
Great Product
Shipped fast and Packaged well! Would recommend for anyone needing a Cement-On Surface T/C, Style 1-B.
Date published: 2022-02-21
Rated 4 out of
5
by
jacklin from
review
good product good product good product good product
Date published: 2018-03-22
I would appreciate your advice for my project, I need a sensor with high accuracy to be installed on a pipe's surface and put it inside a soil container. the temperature range is going to be between 4 and -20 centigrade. Which product do you recommend?
Thank you for your inquiry. I would recommend the SA2C-K-72.
Date published: 2020-09-16
WHAT GAUGE WIRE ARE THE LEADS? sOLID OR STRANDED.
Hi Mikechymbor
Leads are 30 awg solid
Best regards
OMEGA
Date published: 2020-06-29
We have an application where the surface temperature will reach about 1250 Deg C , The Duration of test 25 Sec to 130Sec. Please confirm whether we can use CO1-K-B or CO2-K or any other suitable
The CO1-K-B and the CO2-K are not suitable for use above 370C or 650C respectively. You should look at IR as a possible solution and contact the Temperature Engineers at temp@omega.com.
Date published: 2022-01-31
Could you please give me some information about the foil material ? It is important for me to know thermal properties of foil. Many thanks in advance
There are several different materials used for the patches so send you request to temp@omega.com with the specific part number and it can be researched.
Date published: 2020-06-17
Can these thermocouples work with miniature mini t-type thermocouple connectors?
CO1-* come standard with stripped leads, however they'll work fine with a mini connector instead. Be sure to use same thermocouple calibration
Date published: 2022-11-11
What is the service life of these installed thermocouples on an unused part?
Thank you for your inquiry. Unfortunately we do not have any life cycle or time before failure data for these products. We cannot provide any signed documentation for these products lifespan since the lifespan is based entirely on the application and/or environmental conditions it is stored in.
Date published: 2022-10-17
Is this one thermocouple per pack? Or more?
Thank you for your inquiry. This thermocouple is sold as an individual item, quantity 1.
Date published: 2019-11-19
What is the accuracy of these thermocouples?
These thermocouples meet "special limits of error" specs. For type "T" accuracy is +/- 0.5 deg C or 0.4% of reading, whichever is greater; for types K, J and E, accuracy is +/- 1.1 deg C or 0.4% of reading, whichever is greater.
Date published: 2022-10-26
