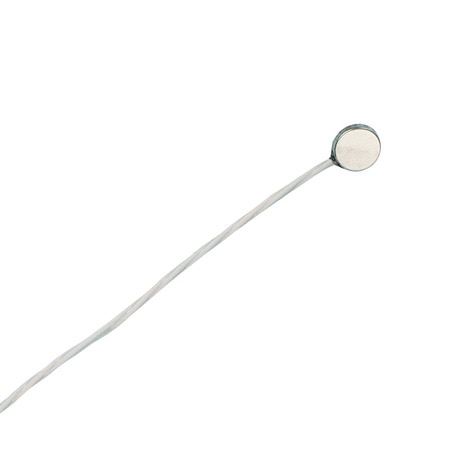

Glue-On RTD Surface Sensors with Coin Style SS Housing
Encapsulated RTD Sensors
Volume discounts available
Volume Discount Schedule
| Quantity | Price each |
|---|---|
| 1-4 | $153.62 |
| 5-9 | $145.94 |
| 10-24 | $142.87 |
| 25-49 | $136.72 |
| 50-99 | $133.65 |
| 100+ | $130.58 |
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
- Flat Disc Shape is Ideal for Surface Temperature Measurements
- Bonds to Surfaces for Measuring Heat Loss or Operating Temperatures
- Sensor Contains a High-Accuracy, 100 Ohm, Class “A” DIN Platinum Element. 1 meter (40") or PFA Insulated & Jacketed Cable and 3-Pin Miniature Connector
- Temperature Coefficient (Alpha) = .00385 ohm/ohm/°C
- Max temp. 230ºC
RTD-809 Model Options
View all modelsEdit these specs to order a different model. Not all combinations are valid. Options compatible with previous selections will be in bold.
*Highlighted options are not compatible. Please select a different combination.
Category
Process Temperature Range
Sensor Application
Nominal Resistance
Accuracy
Number of Wires
Cable Insulation
Termination Connection Type
Cable Length
Mounting Style
Maximum Temperature Measurement
Minimum Temperature Measurement
Description
This flat "disc" encapsulated 100 ohm Class A DIN platinum RTD sensor is ideal for surface temperature measurements such as heat loss or compressor efficiency applications. The sensing end can be cemented into place for permanent mounting or can be adheredusing a single-side tape.When combined with Omega's extension cables, transmitters, controllers, dataloggers, thermometers or temperature displays, these sensors become the heart of a complete temperature control and monitoring system.
Rated 4 out of
5
by
LDM_Rory from
Great sensors
They are great sensors. They act as you would expect a pt100 to act, they're unobtrusive, and so far have been reliable. I use wide zipties to hold them in position while the epoxy cures over the day.
However I have no need for the connectors. A connector like that is asking for a failed connection in the environments I work in. I would prefer no connector or have an M12 connector directly attached to the puck. The insulation could also be thicker but that seems standard for many of these sensors with wires from Omega.
Date published: 2019-02-16
What is the size of the sensor disk?
Thank you for connecting with Omega! The sensor disc is: 11 mm (7⁄16") diameter, 3 mm (1⁄8") thick sensor for surface mounting and can be cemented into place for permanent mounting or fixed using adhesive tape. Let us know if you need any further assistance.
Date published: 2019-05-08
